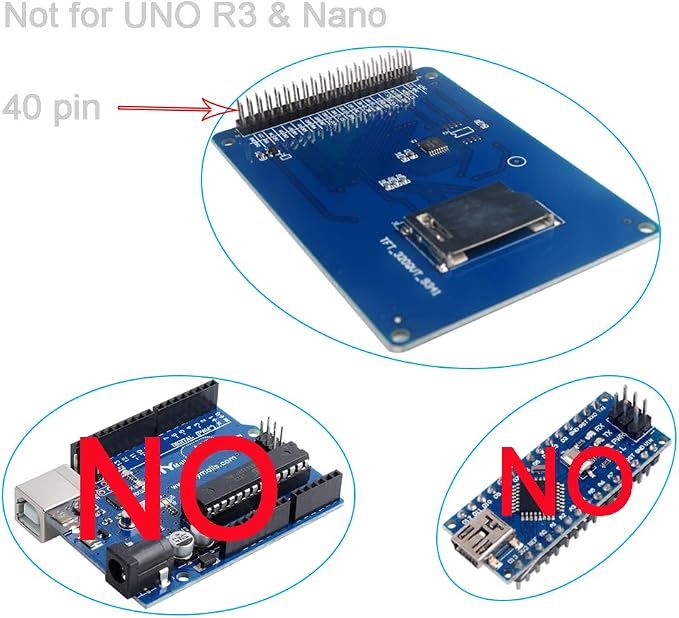

- ILI9341 tft display has 40 pins, so it is not compatible with u no and na no board.
- ILI9341 display works at 3.3V. If you use it for mega-2560, please insert TFT 3.2 shield, not directly connect board with tft lcd module.
- You may need to set a suitable parameter in sketches to use this 3.2" touch screen, but it is not a difficult task.
- Brightness NOT adjustable.
- ili9341 3.2 inch tft lcd can not work with esp32 board due to no SPI interface.

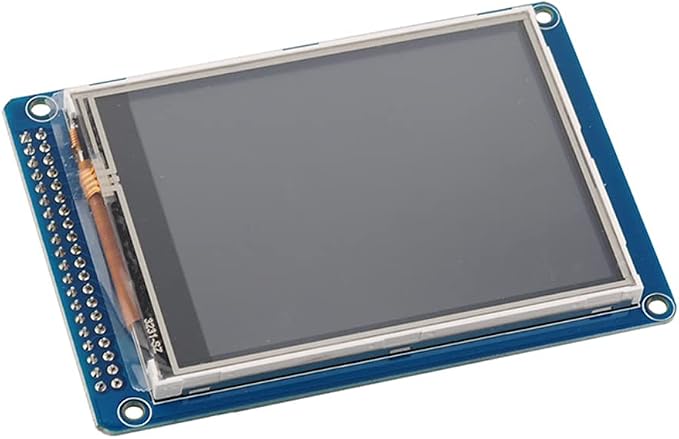

Product description
Specification

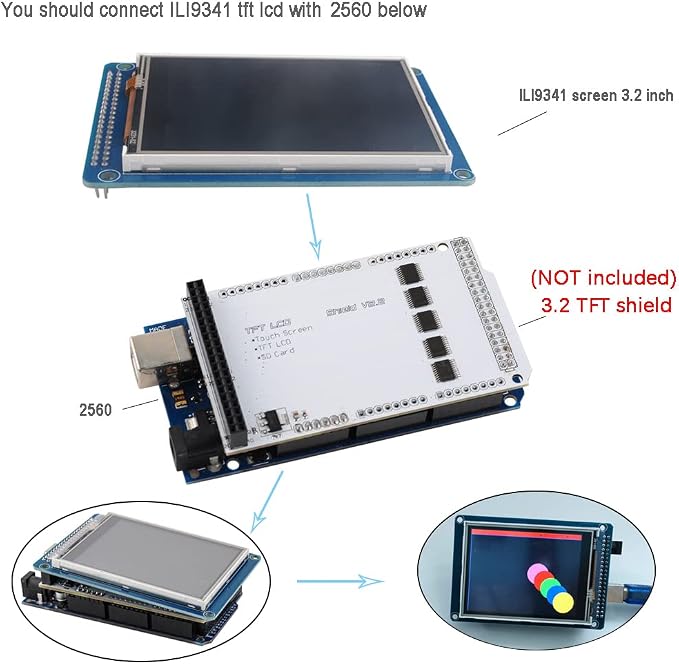

How to Connect with 2560 ?

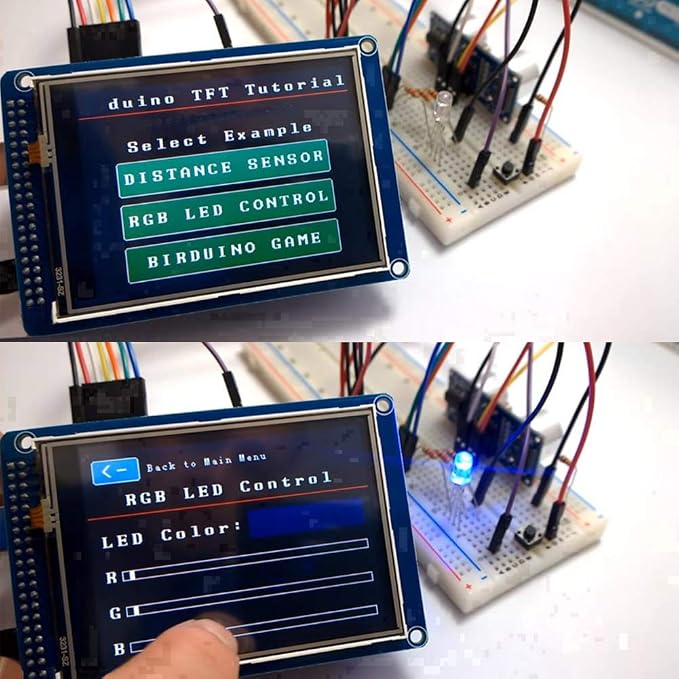

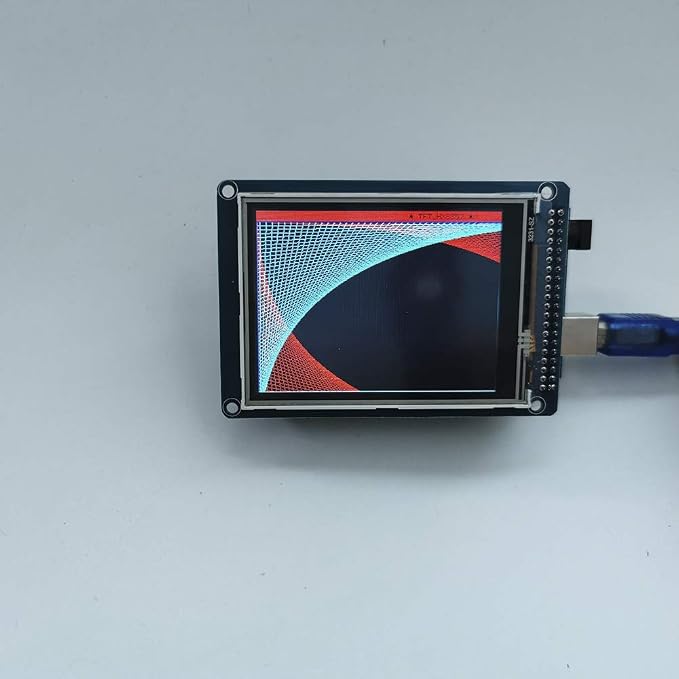

Display Image & Graphics

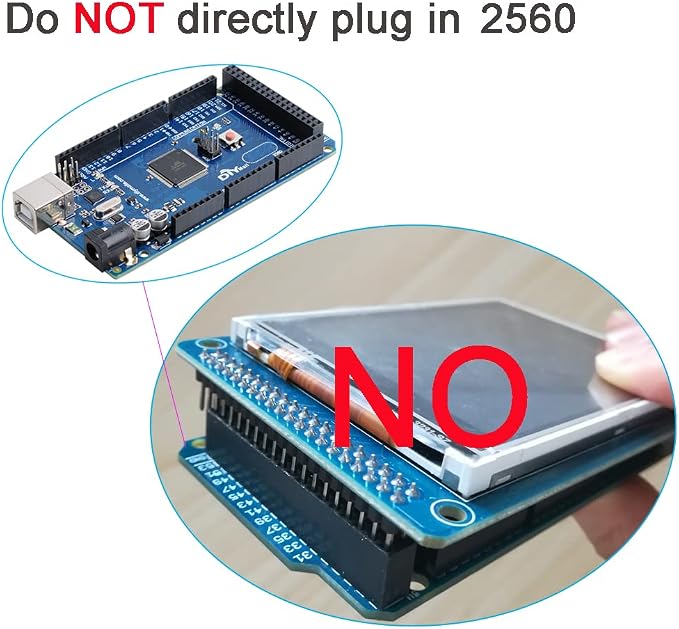

The 3.2 inch ILI9341 tft lcd display is designed for mega 2560. But please do NOT directly connect the 3.2 touchscreen with 2560 board. Otherwise, it may be burned.
