2MP Global Shutter USB Camera 90fps High Frame Rate 2.8-12mm 4X Manual Zoom Lens Industrial Camera for Machine Vision Lightburn Jetson Nano Live Streaming &amp Microscope

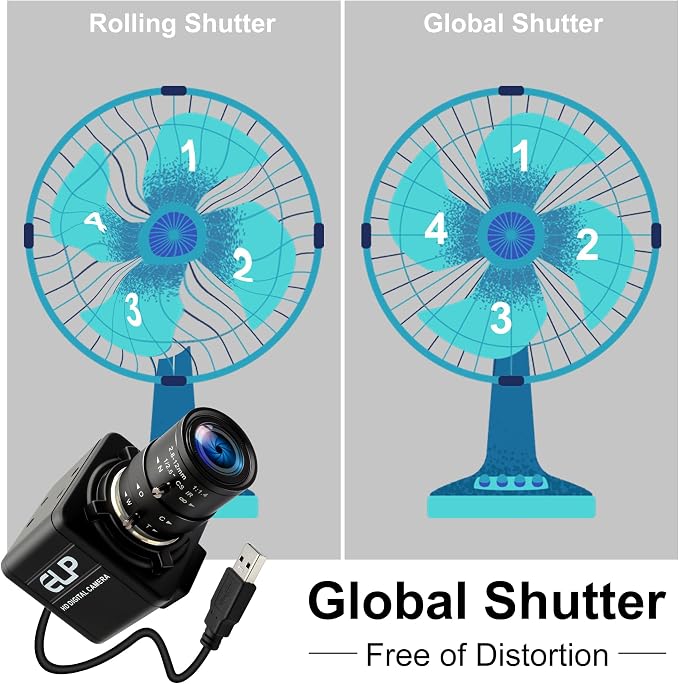

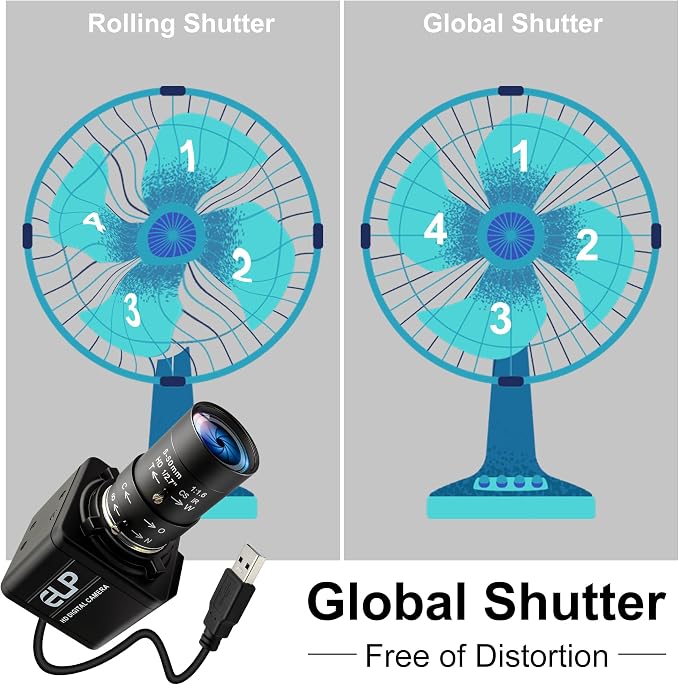

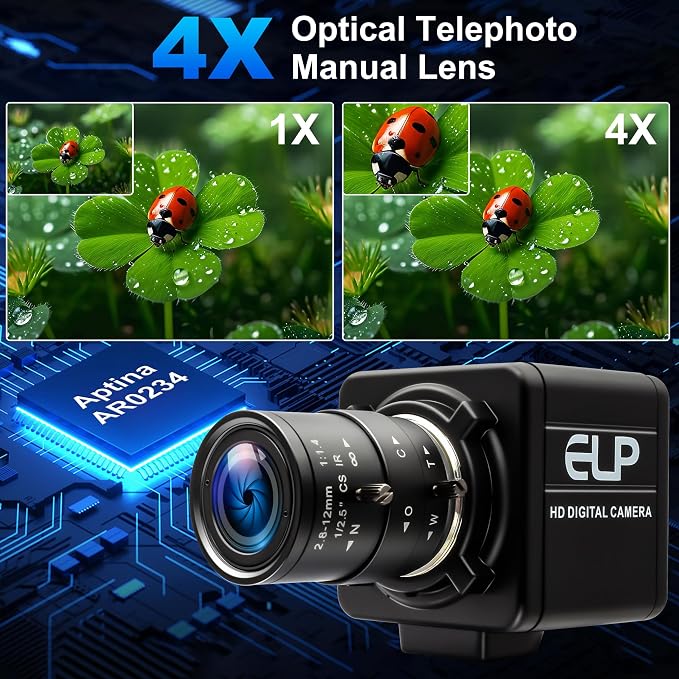

- 2MP Global Shutter & 90fps High Frame Rate： This camera features a 2MP global shutter sensor and up to 90fps high-speed frame rate, effectively eliminating motion blur and distortion. It delivers stable and clear images for fast-moving objects, ideal for high-speed capture, motion detection and industrial applications. - 2.8-12mm 4X Manual Varifocal Zoom Lens： Equipped with a 2.8?12mm varifocal CS mount lens supporting 4X manual zoom. You can freely adjust focal length, focus and field of view to meet various needs from wide viewing to close?up detail capture. - Strong System & Device Compatibility： UVC compliant plug?and?play design with no driver required. Fully compatible with Windows, Linux, Jetson Nano and embedded systems, supporting stable long?time working for industrial and daily use. - Wide Software Support： Perfectly works with Lightburn, OpenCV, machine vision software, live streaming tools and video monitoring programs. Great for laser engraving monitoring, machine vision, production detection and live broadcast. - Versatile Wide Applications： Widely used in industrial inspection, machine vision, Lightburn monitoring, USB video microscope, live streaming, high-speed recording, security monitoring and embedded projects.

Product description

IFWATER Global Shutter 90fps USB Camera 4X 2.8-12mm Varifocal Lens High Speed UVC Webcam, Golf Swing & 3D Printer Machine Industrial Vision Came

IFWATER 4X 2.8-12mm Global Shutter 90fps USB Camera Varifocal Lens UVC Webcam for Golf Swing Analysis, 3D Printer, Industrial Vision, Plug & Play

90fps Global Shutter USB Camera High Frame Rate Industrial Camera, Distortion-Free Motion Capture Webcam for Machine Vision, Computer, Laptop

IFWATER Global Shutter 90fps High Speed USB Camera, 2.8-12mm Varifocal Close up Lens UVC Webcam, Golf Swing Analysis & 3D Printer Camera

IFWATER 90fps High Speed USB Camera 2MP USB Camera Zoom Lens 1080P Close-up USB Camera Lightburn Industrial Camera for Laptop,Raspberry Pi,Jetson Nano

IFWATER 90fps Global Shutter USB Camera,1200P Golf Swing Camera High Frame Rate 2.8-12mm 4X Manual Zoom Lens Industrial Camera for Machine Vision

SPECIFICATIONS

- Sensor: 1/2.6” Aptina AR0234

- Resolution: 2MP 1920 x 1200

- Data Format: MJPG/YUY2

- Frame Rate: 90fps@1920x1200/1080P

Lens: 2.8-12mm variable focus lens

- Focusing Range: 0.33ft (10CM) to infinity

Functionality and Compatibility

- Adjustable parameter: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Exposure.

- System Compatibility: Windows, Linux, Mac, and Android with UVC.

Power

- Power Supply: USB BUS POWER 4P-2.0mm Socket

- Working Current: MAX 370mA

- Operating Temp.: 14°F~158°F (-10~70℃)

This IFWATER global shutter USB camera delivers clear, motion-blur-free video at up to 90fps, making it ideal for high-speed capture like golf swing analysis.

It features a 2.8-12mm 4X manual varifocal lens for flexible framing and adjustable focus. With UVC plug-and-play support, it works seamlessly with laptops, Android devices, and Raspberry Pi. Perfect for industrial machine vision, 3D printer monitoring, golf training, live streaming, and embedded projects.

Product Description

*Item: 2 Megapixel HD 1080P 90FPS Global Shutter USB Camera

*Sensor: 1/2.6”AR0234 CMOS Sensor

*Resolution: up to1200P, 1920(H)X1200(V)

*High Speed/High FPS: 1920x1200 Mjpeg 90FPS, 1920x1080 Mjpeg 90FPS

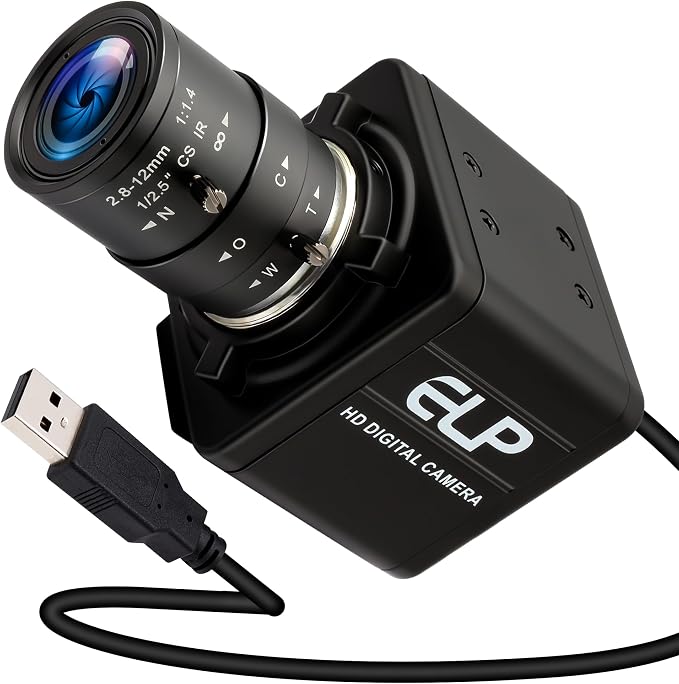

*Lens: Megapixel HD CS 2.8-12mm lens

*USB Cable: Support different length cable, standard with 3m cable (0.3m/0.5m/1m/2m/5m...optional)

*UVC Protocal:Free driver, Plug & Play

*Parameters adjustable: Exposure, Hue, White Balance, Contrast, Gamma, Brightness....

*Operating Systems:Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI.

*Software:Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo

Booth, Face time, Quick Time...)

*OTG Support: Easy connect to Android tablet, Android Smartphone via OTG cable.

*Package Includes: 1PCS USB Camera with 3m USB Cable.

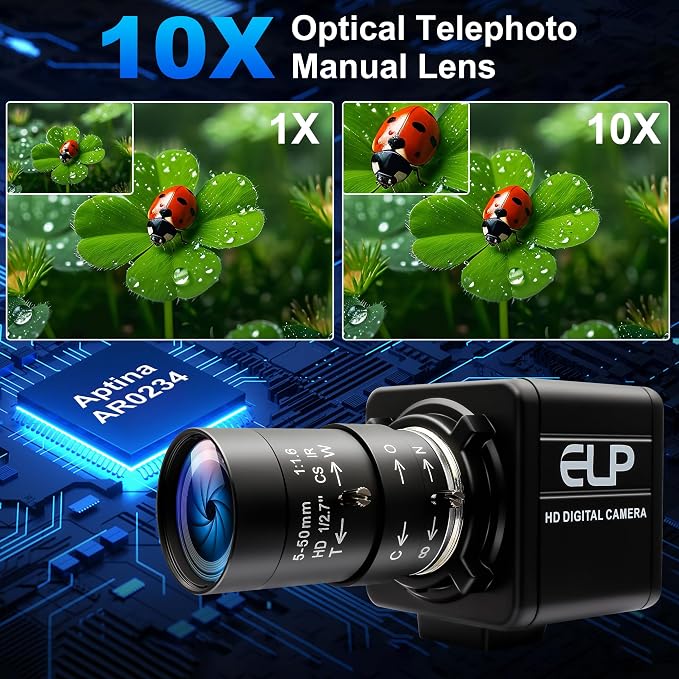

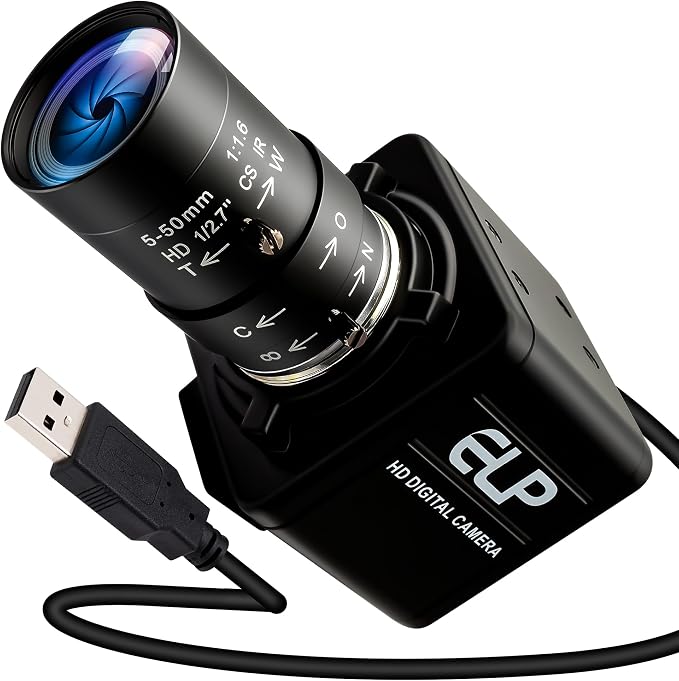

IFWATER is a high-speed 2MP USB camera powered by the Aptina AR0234 1/2.6” global shutter sensor, supporting up to 90fps for crisp, motion-blur-free imaging?even for fast-moving objects. It features a 5-50mm manual varifocal zoom lens, allowing adjustable zoom, brightness, and focus for various shooting distances.

UVC-compliant and truly plug-and-play, this camera works with Windows, Linux, Mac, Android, and Raspberry Pi without extra drivers. With great low-light performance and stable high-speed transmission, it is ideal for golf swing analysis, industrial machine vision, 3D printing monitoring, robotics, and high-speed capture applications.

Warm tips:

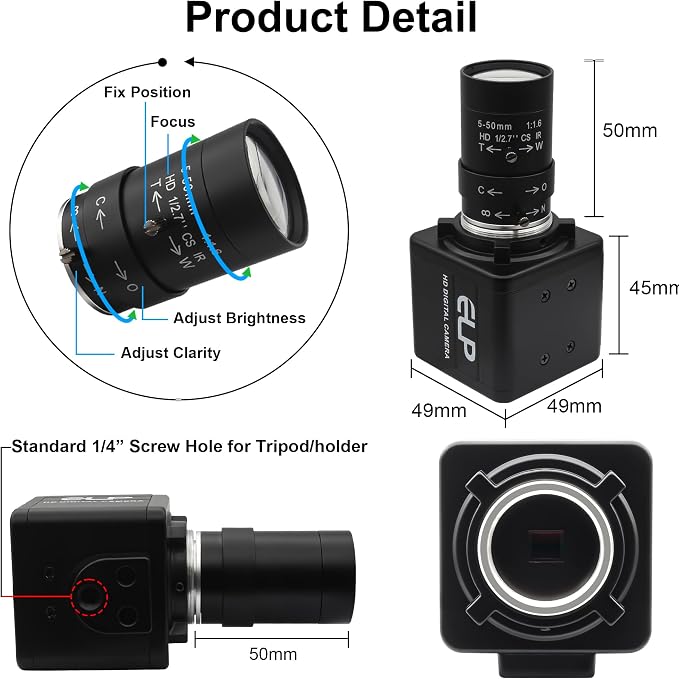

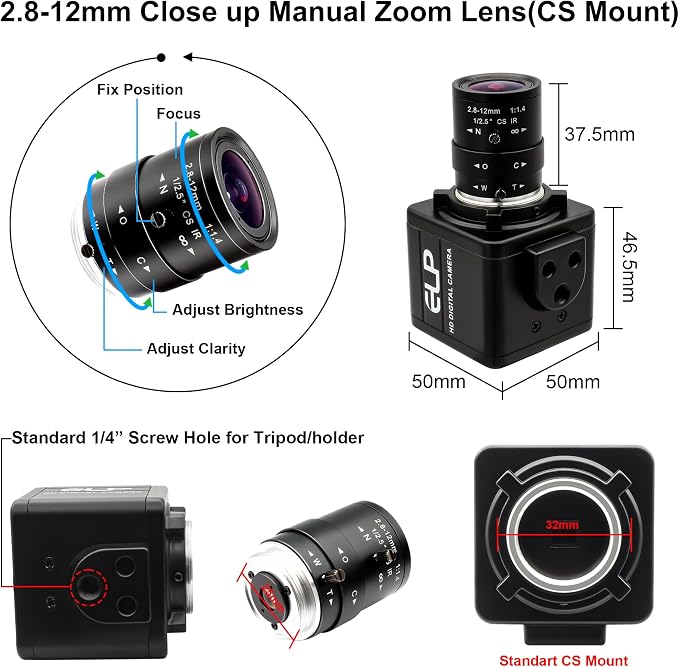

1: If you encounter lighting issues during use: simply turn the knob at the bottom of the lens to adjust the aperture and control brightness. You may also turn the knob on the other end for manual focusing.

2: If you use this device for DIY projects such as 3D printer monitoring, please ensure the environment is well-lit.

3: This camera is extremely easy to install and compatible with all major platforms. The adjustable functions ensure you get the best angle and lighting for your needs.

4: Wide Compatibility for Multi Devices: Works seamlessly with laptops, Android devices, Raspberry Pi and more industrial or DIY platforms, ideal for machine vision, industrial monitoring, computer vision projects and home experimental applications.
