2inch LCD Display Module Compatible with Raspberry Pi 5/4B/3B/Pi3B/ Pi Zero 2W/Zero W/Pi Zero 2W/ Zero 2WH IPS Screen 240x320 Resolution 262K Display ColorST7789VW Driver Chip SPI Interface

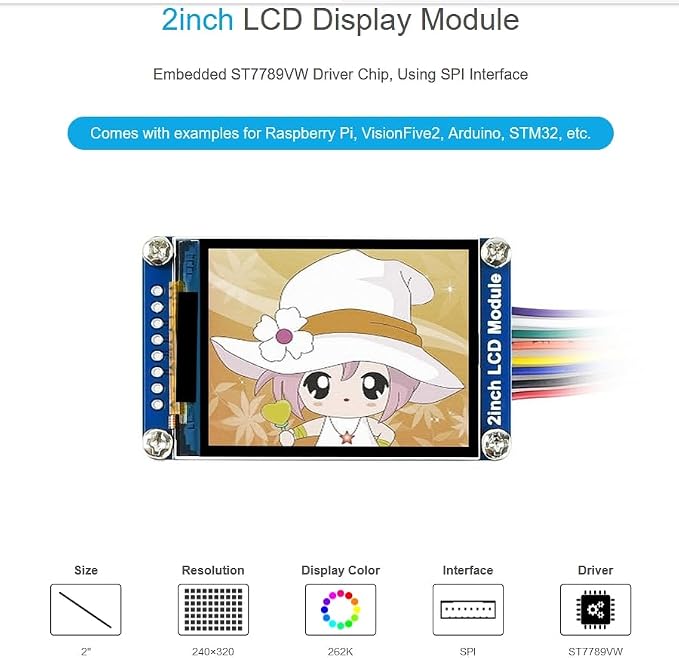

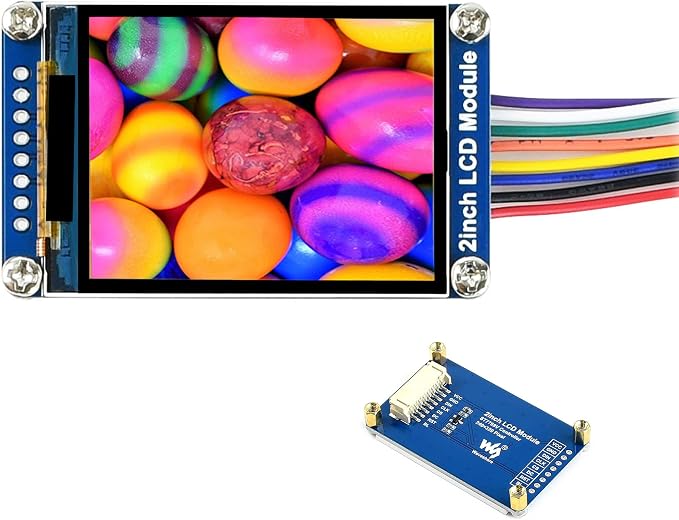

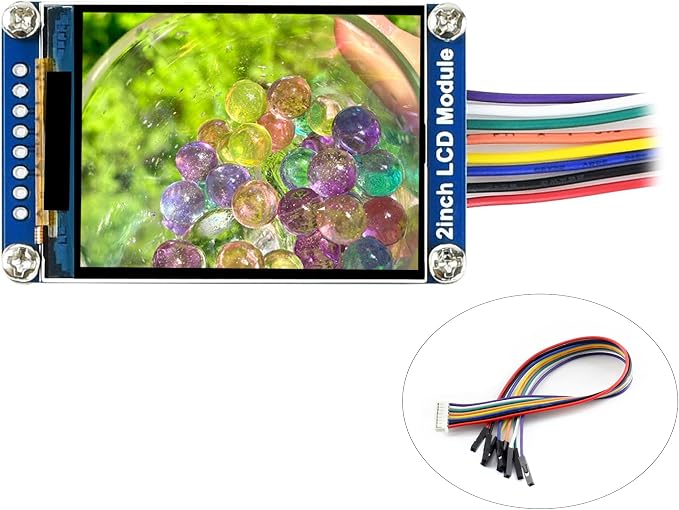

- This is 2inch LCD Display Module, 240×320 resolution, 262K colors, clear and colorful displaying effect

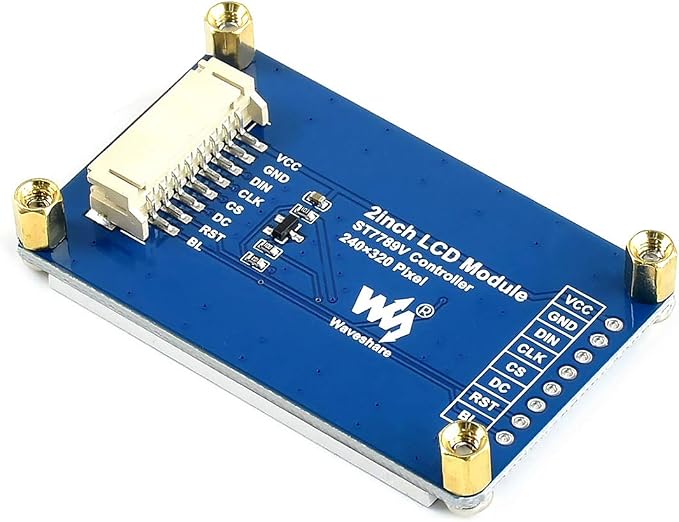

- Embedded ST7789VW driver chip. SPI Interface, Compatible with Raspberry Pi/with Ardui/ STM32, etc.

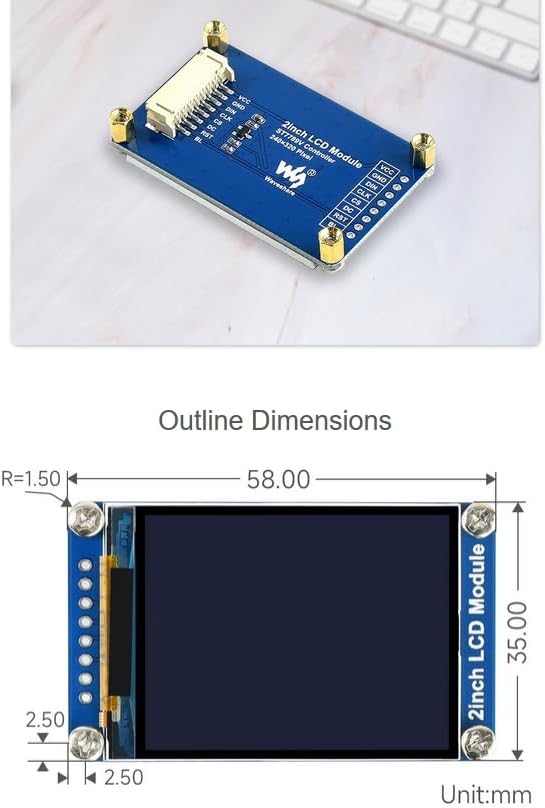

- As a 2-inch IPS display module with a resolution of 240 * 320, it uses an SPI interface for communication. The LCD has an internal controller with basic functions, which can be used to draw points, lines, circles, and rectangles, and display English, Chinese as well as pictures.
- The LCD supports 12-bit, 16-bit, and 18-bit input color formats per pixel, namely RGB444, RGB565, and RGB666 three color formats, this demo uses RGB565 color format, which is also a commonly used RGB format.

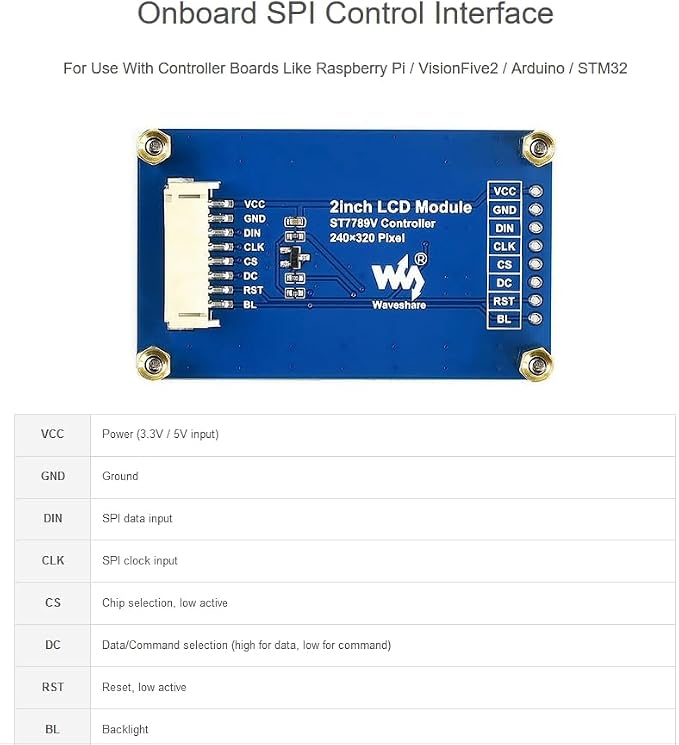

- For most LCD controllers, the communication mode of the controller can be configured, usually with an 8080 parallel interface, three-wire SPI, four-wire SPI, and other communication methods. This LCD uses a four-wire SPI communication interface, which can greatly save the GPIO port, and the communication speed will be faster.

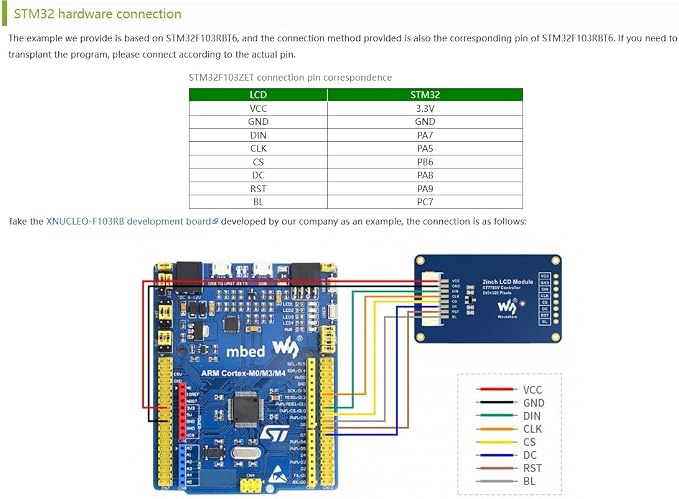

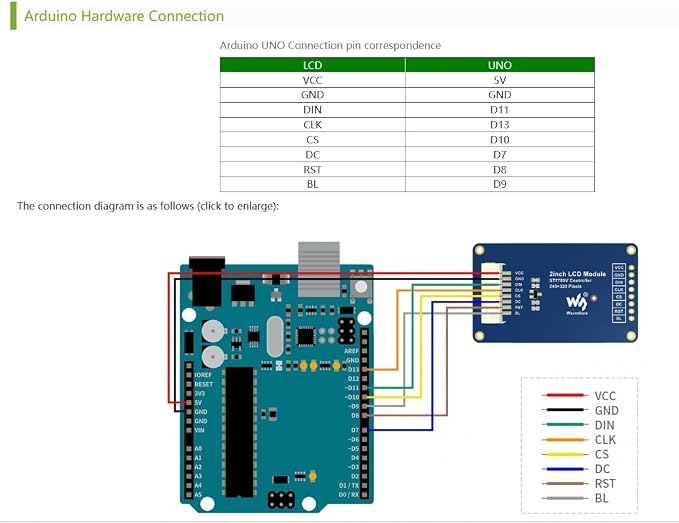

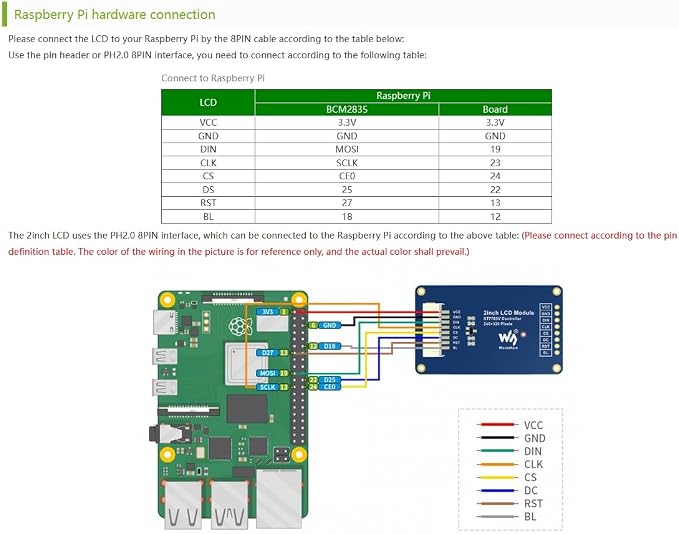

- Comes with online development resources (examples for Raspberry Pi/Ardui/STM32), Please check: n9.cl/9v6h0
