- ★10 POINTS TOUCH: This Item support 10 points touch on Windows 7 above and Android OS, just support one point touch on Mac iOS and Linux, don't support TV box.
- ★EASY INSTALLATION: This is Plug in design, the installation job is very simple and easy. Meanwhile every item be with installation manual.
- ★LONG SERVICE LIFE: Warranty is 3 years. The out frame material is full aluminum, the infraed light and PCBA is reliable quality and stable performance.
- ★FREE DRIVER: This Item is plug and play, don't need to install driver. If you need calibrate it or rotate it, we can provide software tool to you.
- ★APPLICATION: Design for Touch Screen Monitor, Touch All in one, Touch Kiosks,Touch Digital Signage, Touch Whiteboard. Application sector be including Game,Education, Meeting, Exhibition, Advertding and so on other interactive applications.
Product description
24 inch IR touch frame
Product description
Product advantage
Product drawing
Produtc datasheet
Product appearance
Detail touch specification

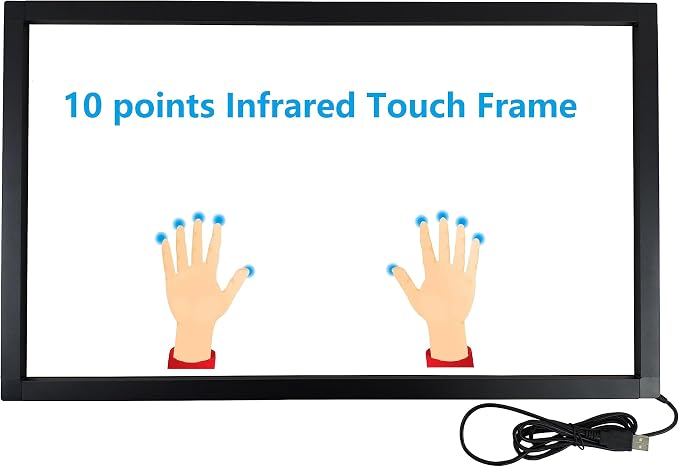

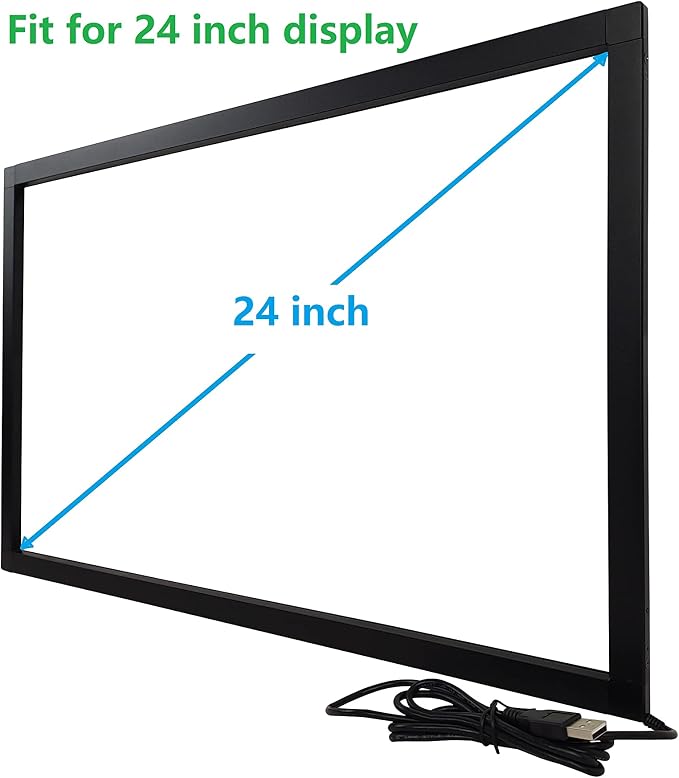

1-This item is Deyowo 24 inch 10 points interactive infrared touch screen frame overlay, design and use for interactive board, touch LCD monitor, touch display TV. Touch Kiosks, Touch Digital Signage, Whiteboard, Exhibition and etc.
2-The out frame of Infrared Touch using alluminum material, product is strong and durabel, not including glass.

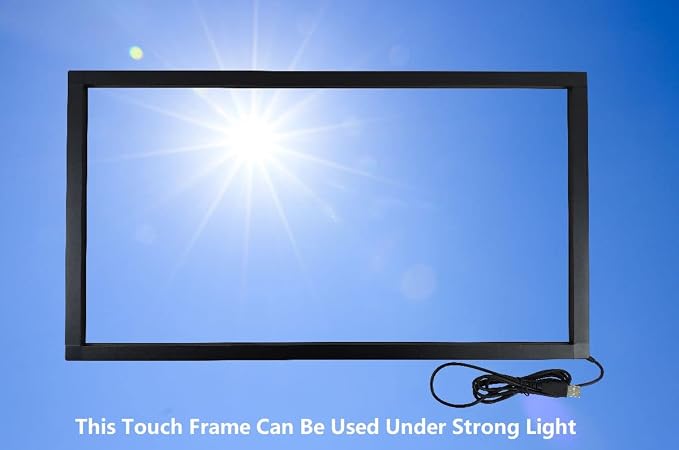

3-The infrared touch screen is anti-sunshine, there are no light interference, no drift even if it be uesed under the sunshine directly.
4-This item just only matching 24 inch display, we showed the detail dimension drawing on webpage, you can check if your display can match this item.
5-This item is only touch frame for sale which be without glass, the installation is very simple and very easy, we will provide Installation Manual.
6-The infrared touch screen is Free driver for Windows, Android and Linux. Support Mac iOS with HID driver, you can sent message to us on Amazon and get it.
7-Many Android TV Box model be without touch function, please inquiry TV box supplier if the box be with touch function before you order this item.

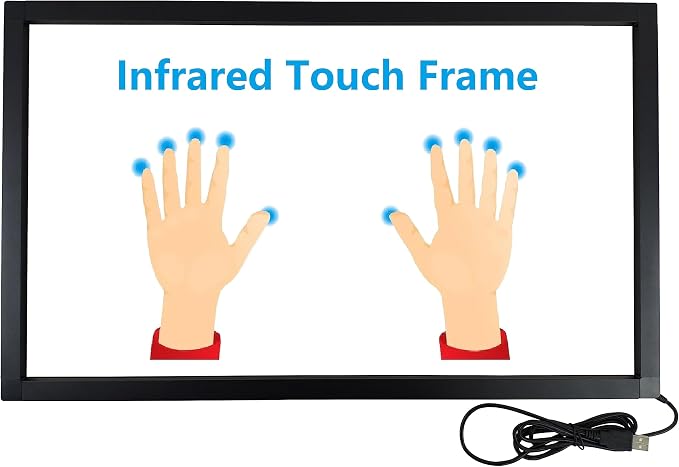

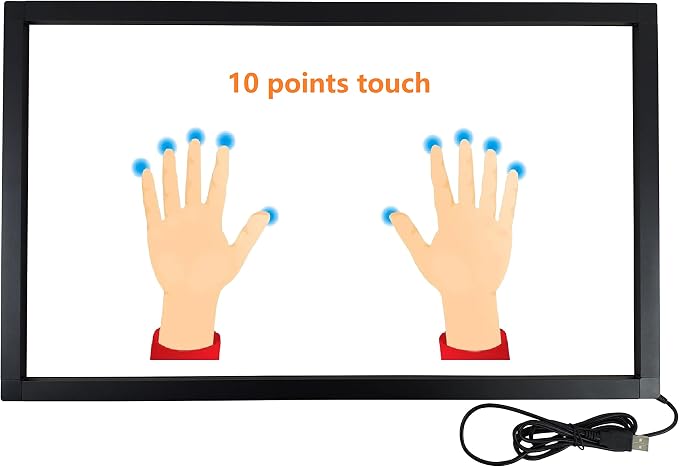

Support 10 points interactive touch, design and use for interactive board, touch LCD monitor, touch display TV. Touch Kiosks, Touch Digital Signage, Whiteboard, Exhibition and etc.

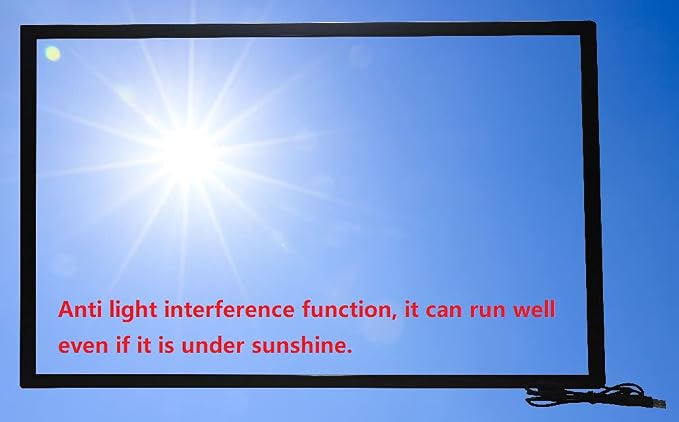

Anti light interference function, it can run well even if it is under sunshine.

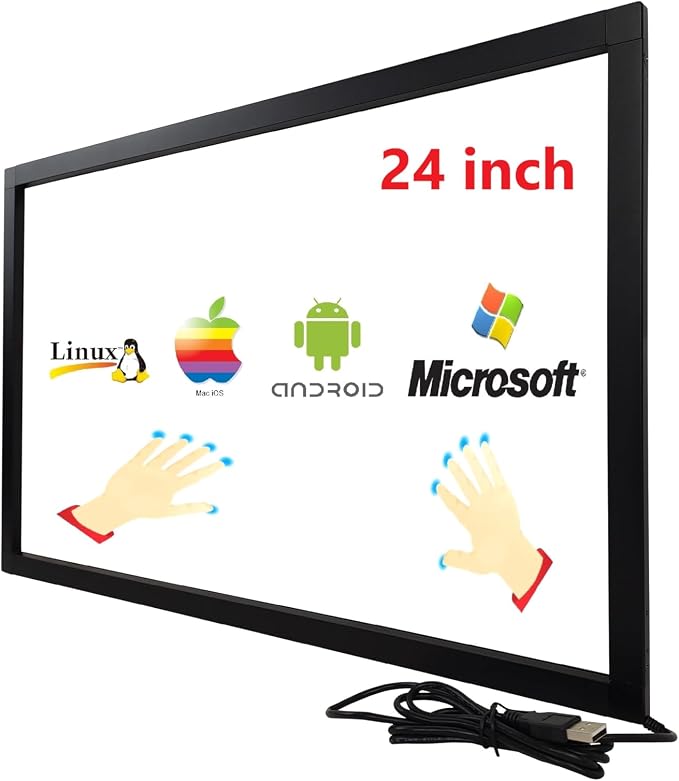

1-Driver free for Windows7, Windows8, Windows10, Native Linux and Android OS.
2-Need to install the HID driver on Mac OS
3-Does not support Smart TV Android system, Raspberry Pi

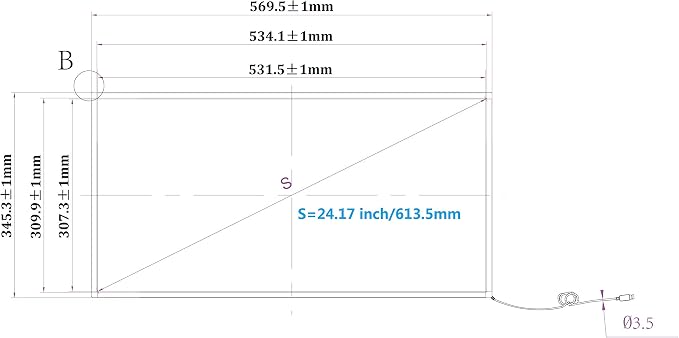

DIMENSION
●Display area: L1=531.5mm, W1=307.3mm
●Outside area: L2=569.5mm,W2=345.3mm
S= 24.17inch (1200.1mm), match 24 inch display
●Ratio: 16:9
ElECTRICAL
●Operating Voltage: DC 4.5V ~ DC 5.5V

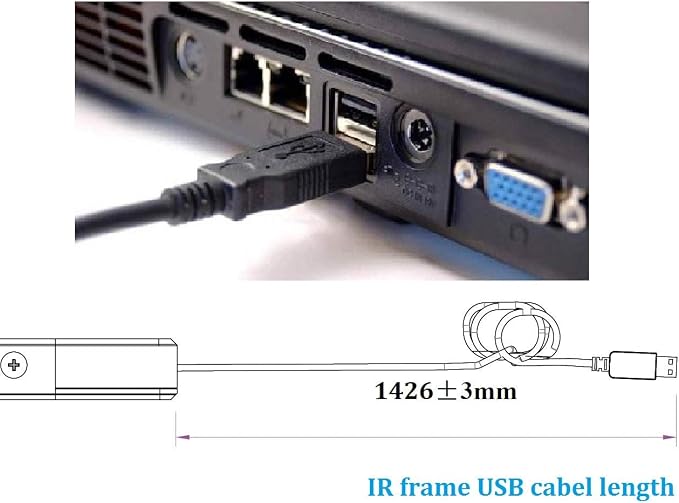

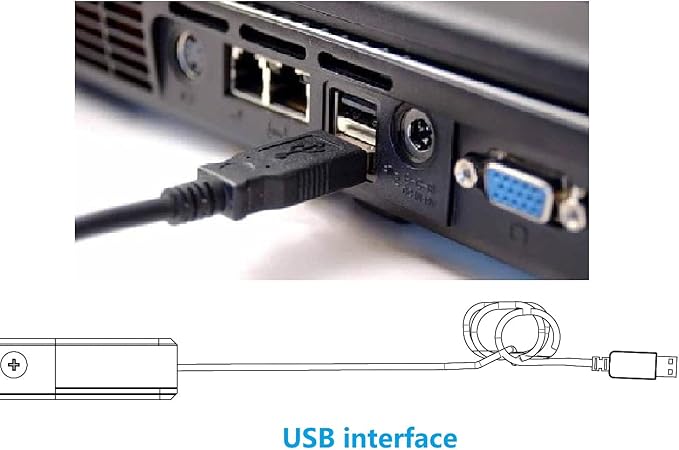

●Power Supply: Single USB Connection
●Power Consumption: 1.0W (200mA at DC 5V)
ENVIRONMENT
●Operating Temperature: -20°C~70°C
●Storage Temperature: -30°C~80°C
●Operating Humidity: 10%~90%RH(Non-condensing)
●Storage Humidity: 0~95%RH

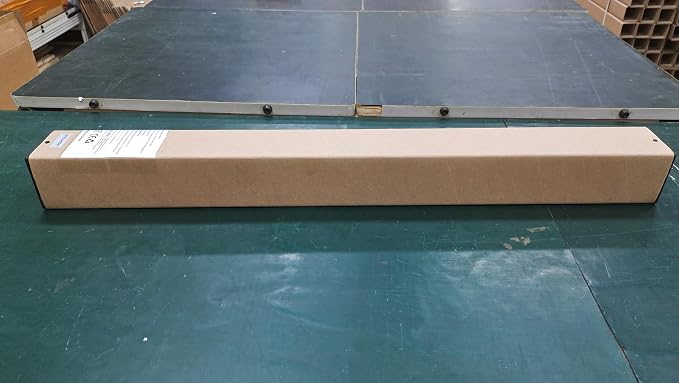

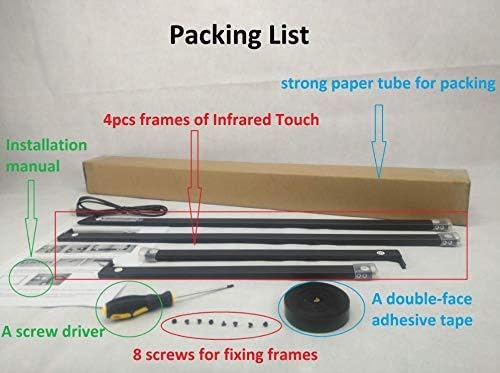

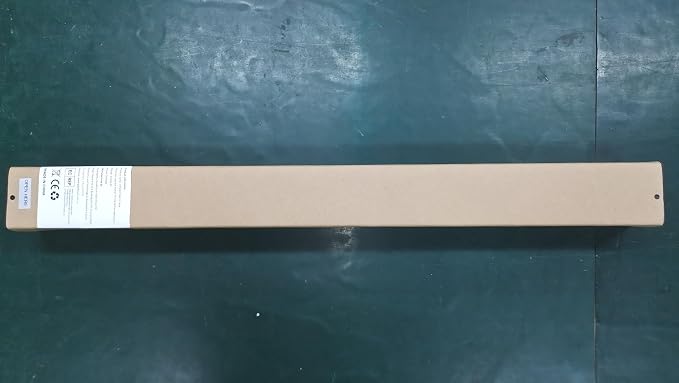

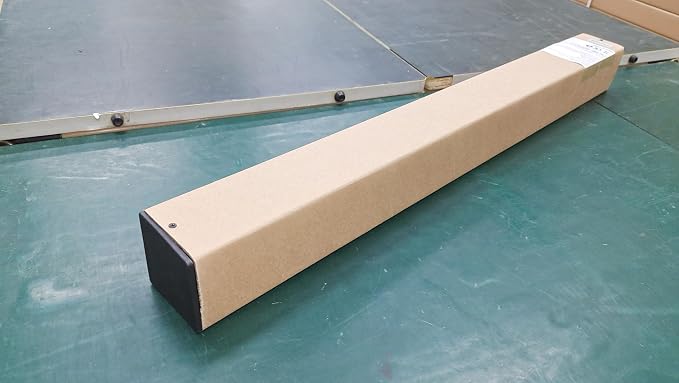

Package using strong paper tube, the inside packing list:
4 pcs touch frames;
8 screws
A installation manual
A screwdriver (gift)
A duable-face adhesive tape (gift)
Before you fixing the touch frames, layout the four frames like the picture. Easy and simple.

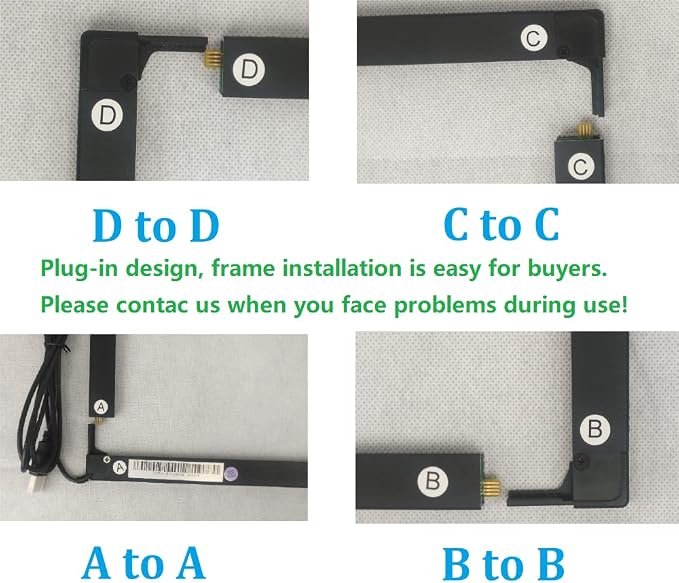

Slot design for four corner interface ports connecting, A to A, B to B, C to C and D to D. Easy and simple. When you face problems during use, you can sent messages to us on Amazon.
