2.8 SPI TFT LCD Display ILI - 9341 Resisive Touch Screen Module | DIYmalls 2.8 SPI TFT LCD Display ILI - 9341 Resisive Touchscreen Module 320x240 5V for Arduino 2560 ESP32 Development Board

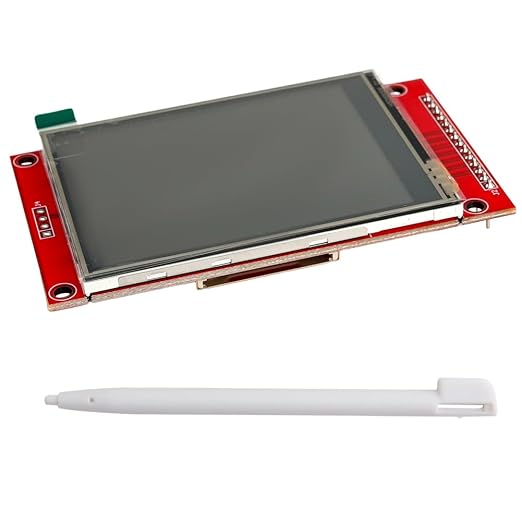

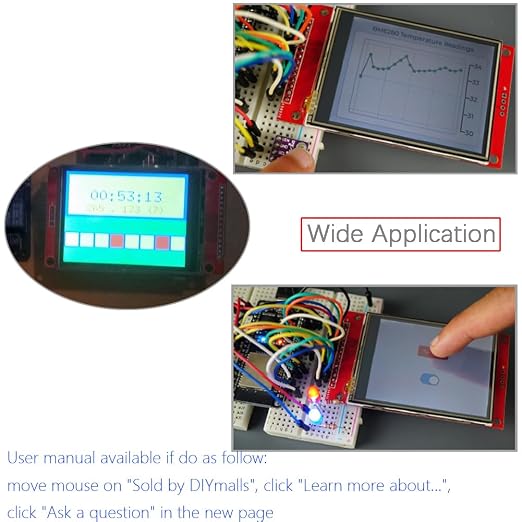

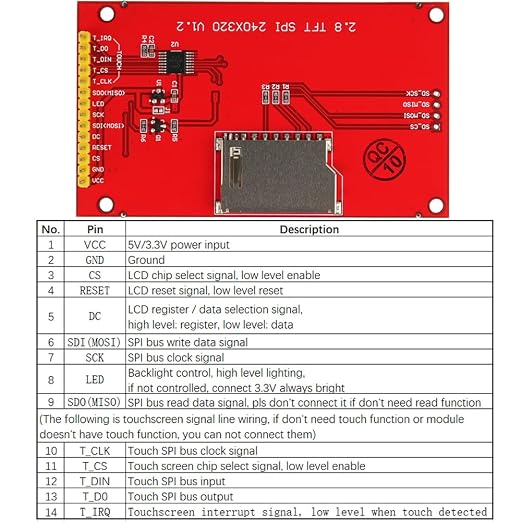

- This 2.8 inch spi module support resistive touch only, no capacitive touch. Please remember to do the calibration before use it for your projects. - The 2.8" resistive touch screen is widely used with many development boards to display temperature humidity, image, text, number etc. - You will get 1pcs 2.8 inch spi module resistive touch screen with touch pen, other accessories NOT included. - You can find many libraries for this 2.8inch touchscreen with ili9341 driver in website. - User manual available if you check the sixth image.

Product description

Feature:

Display Color: RGB 65K color

Type: TFT

Driver IC: ILI9341

Resolution: 320x240 (Pixel)

Module Interface: 4-wire SPI interface

Operation Voltage: 3.3V/5V

VCC Power Voltage: 3.3V~5V

Logic IO Port Voltage: 3.3V(TTL)

Active Area: 43.2x57.6(mm)

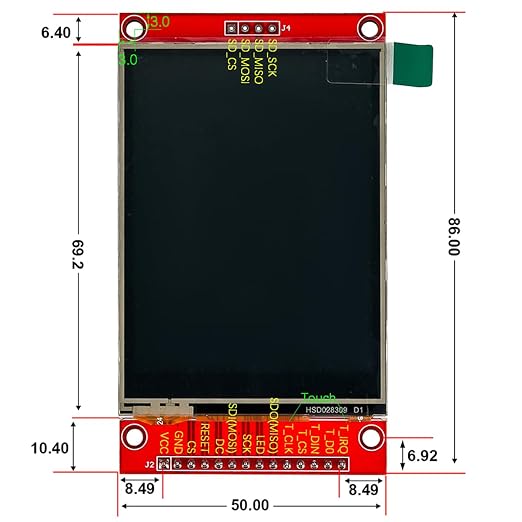

Module PCB Size: 50.0x86.0(mm)
