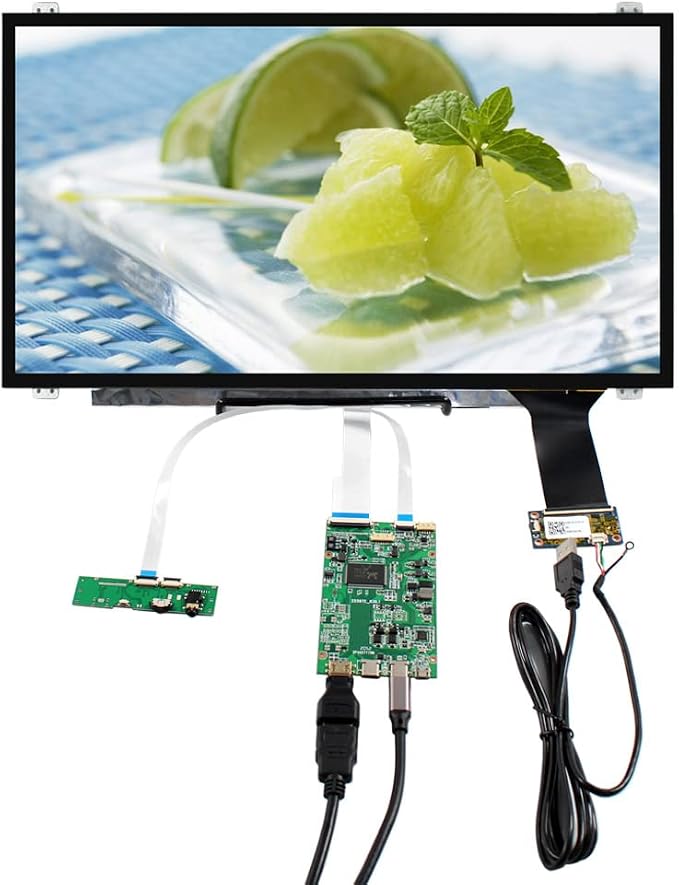

- 13.3" 1080P eDP Display ,Transmissive,Support Color 16.7M 100% sRGB,178 degree full viewing angle ,30pin connector ,Outline Size 305.35×179.36×5(H×V×D)mm,Display Area 293.7(W)×165.2(H) mm,400nit Brightness,Contrast Ratio 1000:1 .

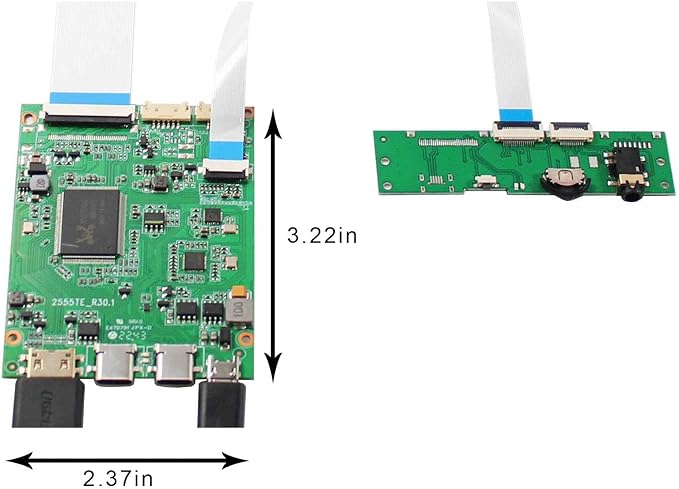

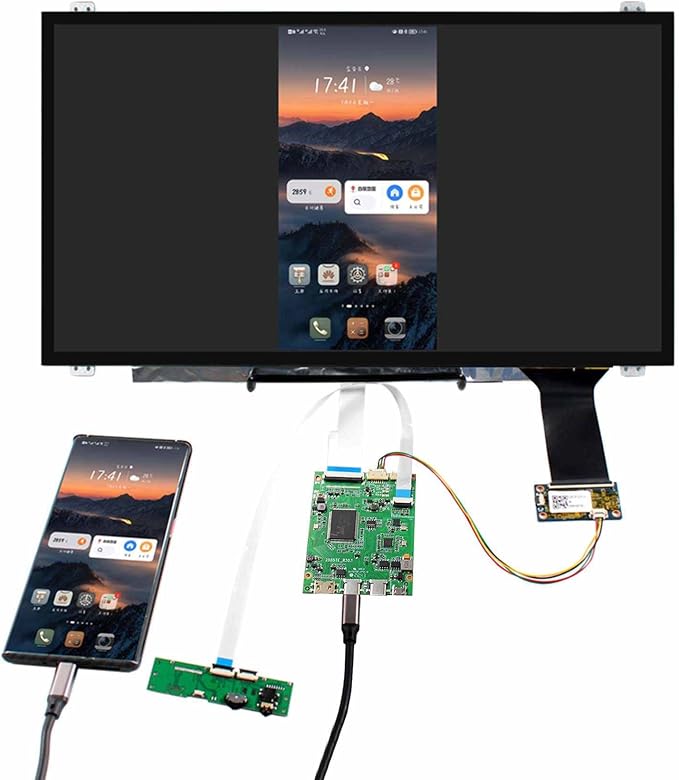

- USB C driver board video input: USB C ,Output: eDP USB (max 500mA),Audio Output: Speaker.(8ohm 2W Speaker With 4Pin 1.25mm Pitch Connector).Pls use the board in insulated environment.
- Input Power Adapter: USB C connector (PD 18W,Pls prepare power supply by yourself).

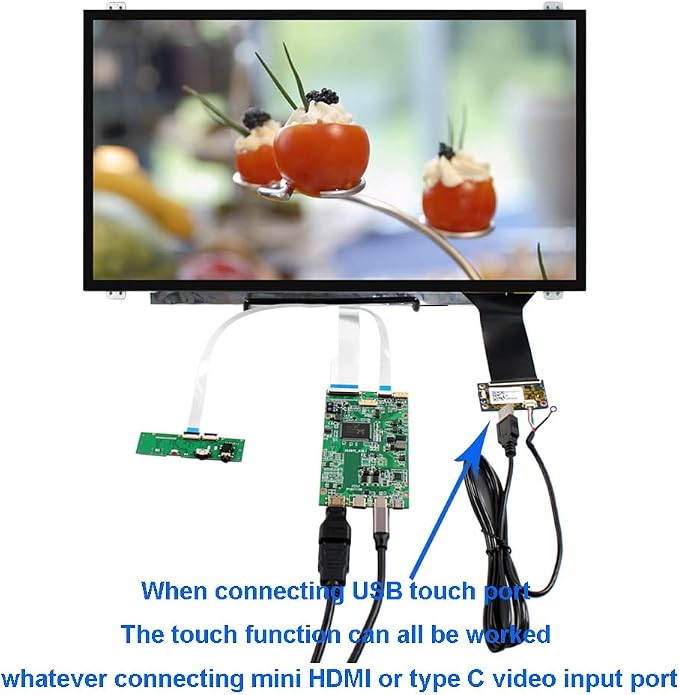

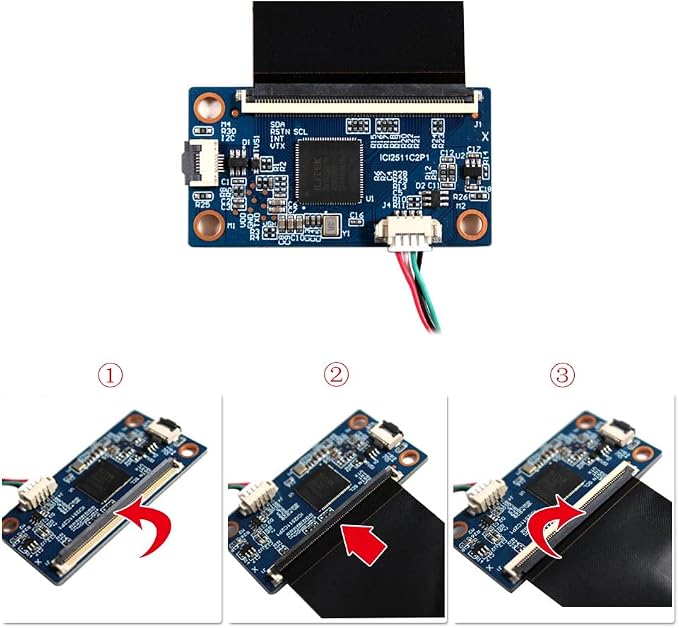

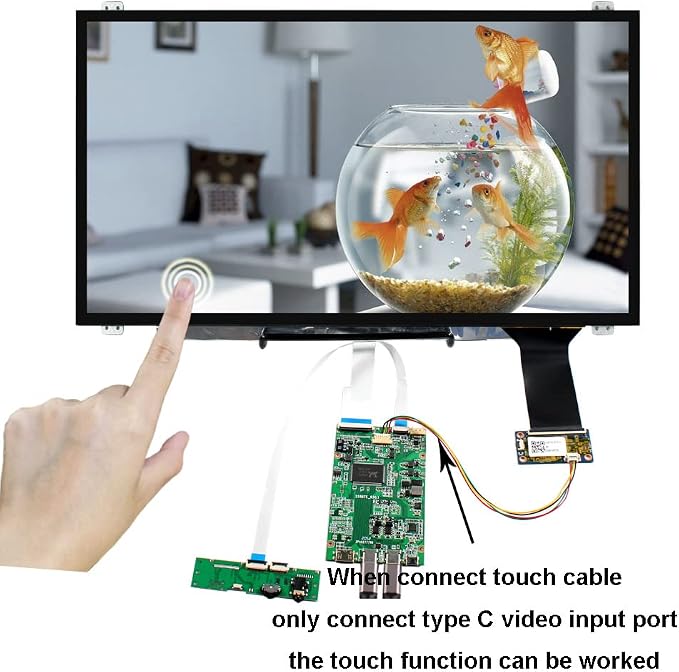

- Plug and play ,with capacitive touch panel , No button damage issue for after long time use,support 10 points multi-touch, there are 2 ways to active the touch panel ,with USB cable or touch panel,You can operate according picture details.
- Packing lists:1× USB C LCD Controller Board ,1× 13.3inch eDP 1920X1080 IPS LCD With Capacitive Touch Panel ,1x USB Cable,1× Keyboard With Cable
