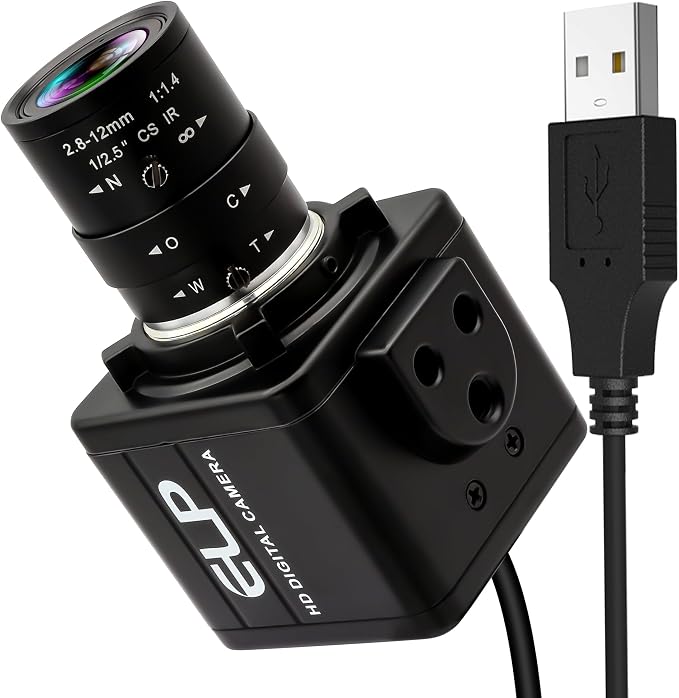

16MP HD USB Camera 2.8-12mm 4X Optical Manual Zoom CS Mount Lens High Resolution for Lightburn OpenCV Live Streaming &amp USB Microscope Plug &amp Play for Windows Linux Jetson Nano

- 16MP High Resolution HD Image: This ELP USB camera is equipped with a high-definition 16MP sensor, delivering sharp and clear high-resolution images. It provides excellent detail capture for industrial inspection, live streaming, documentation, and close-up recording. - 2.8-12mm 4X Optical Manual Zoom Lens: Features a 2.8-12mm varifocal CS mount lens with 4X optical zoom. You can manually adjust focal length, zoom, and focus to capture both distant views and close-up details, making it ideal for flexible shooting needs. - Plug & Play, No Driver Needed: UVC compliant camera with free driver installation. Simply connect via USB to use directly, compatible with Windows, Linux, and Jetson Nano. Easy setup for beginners and professionals alike. - Wide Software & Device Compatibility: Works perfectly with OpenCV, Lightburn, live streaming software, and various monitoring applications. Stable performance for industrial projects, USB video microscopes, machine vision, and embedded systems. - Versatile & Wide Application: Suitable for USB video microscope, close-up monitoring, industrial inspection, live streaming, documentation, Lightburn laser engraving, and machine vision. Widely used with PCs, laptops, monitors and smart TVs.

Product description

IFWATER 16MP HD USB Camera, 2.8-12mm 4X Optical Manual Zoom CS Mount Lens, High Resolution for Lightburn, OpenCV, Live Streaming & USB Microscope

16 Megapixes USB Camera High Resolution with CS Mount 2.8-12mm Manual Varifocus 4X Optical Zoom Lens Close UP OpenCV Lightburn Camera Free Driver

16MP Ultra USB Camera 4K 4X Optical Zoom Manual Lens, USB Video Microscope for PC, Laptop, Monitor, TV USB Video Microscope for PC, Laptop, Monitor,

16MP USB Camera 2.8-12mm Lens,4X Optical Zoom,Manual Varifocal,CS Mount,HD Webcam,Lightburn Camera,OpenCV Camera Close up Industrial Camera

4X Zoom Manual Lens USB Camera with 1/2.8" IMX298 UVC USB2.0 4K Video Webcam for Live Streaming Camera,Plug and Play,Windows Linux,Jetson Nano

16Megapixels USB Camera High Resolution Webcam with CS Mount 4X 2.8-12mm Varifocus Lens Webcam UVC USB2.0 5K Video Lightburn Camera

IFWATER 16MP USB Camera, 2.8-12mm 4X Manual Zoom CS Mount Lens, High Resolution Industrial Camera for Lightburn, OpenCV & Jetson Nano

IFWATER High Resolution 16MP USB Camera, 4X Optical Zoom Lens, Ideal for Lightburn, OpenCV, Live Streaming & USB Microscope Applications

Specification

Model: IF-USB16MP01-MFV(2.8-12)

Sensor: CMOS IMX298

Sensor Size: 1/2.8inch, Pixel Size: 1.12um

Image area: 6.4mm x 5.3mm

Max. Resolution: 4656(H) X 3496(V) 16Megapixel

Compression format: MJPEG / YUY2（YUYV）, Min illumination: 0.5lux

Shutter Type: Electronic rolling shutter / Frame exposure

Connecting Port type: USB2.0 High Speed

Free DriveProtocol: USB Video Class（UVC）

AEC: Support, AWB: Support, AGC: Support

Adjustableparameters:

Brightness,Contrast, Saturation, Hue, Sharpness, Gamma,

Gain, White balance, Backlight Contrast, Exposure

Resolution & frame:

4656 x 3496MJPEG@10fps YUY2 1fps4208 x 3120MJPEG@10fps YUY2 1fps

4160 x 3120 MJPEG@10fps YUY2 1fps4000 x 3000MJPEG@10fps YUY2 1fps

3840 x 2160 MJPEG@10fps YUY2 1fps3264 x 2448MJPEG@10fps YUY2 1fps

2592 x 1944 MJPEG@10fps YUY2 1fps2320 x 1744MJPEG@30fps YUY2 1fps

2048 x 1536 MJPEG@30fps YUY2 1fps1920 x 1080MJPEG@30fps YUY2 5fps

1600 x 1200 MJPEG@30fps YUY2 5fps1280 x 960MJPEG@10fps YUY2 10fps

1280 x 720 MJPEG@30fps YUY2 10fps1024 x 768MJPEG@10fps YUY2 10fps

800 x 600 MJPEG@30fps YUY2 15fps640 x 480MJPEG@30fps YUY2 30fps

Lens Parameter: Standard 1.95mm lens ,optional other M12 Mount lens

Power supply: USB BUS POWER4P-2.0mm socket

Operating Voltage: DC5V, Working Current: 150mA~240mA

Working temperature: -10～70℃, Storage temperature: -20～85℃, Cable: Standard 3M

Detailed Features：

16MP High Resolution USB Webcam with CMOS IMX298 Sensor Manual Zoom USB Camera Free driver Plug and Play

1. High resolution 16MP USB Camera with IMX298 Sensor

2. Super high resolution 4656X 3496 high resolution

3. UVC free driver, USB2.0 Plug and Play

4. Standard with 3m cable

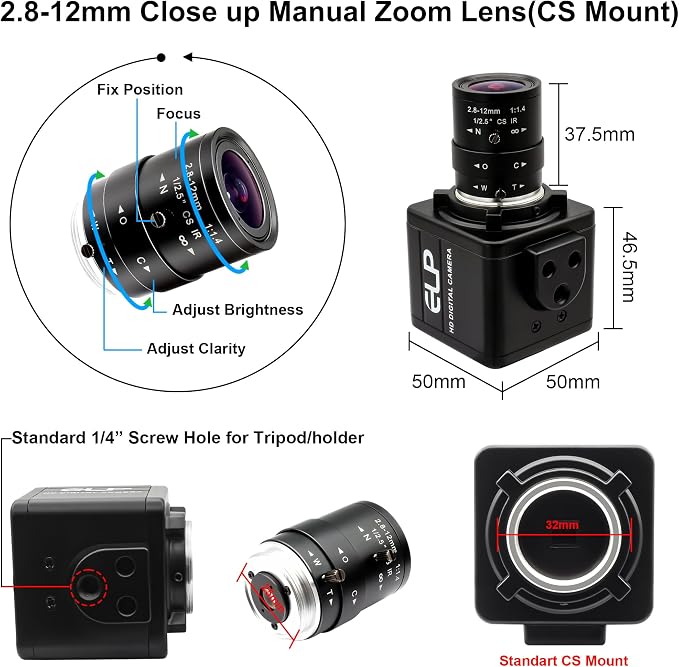

5. With CS Mount, 2.8-12mm 4X Varifocus Close up Lens

6. Support different operating systems, compatible with different softwares

This IFWATER 16MP high-resolution USB camera is equipped with a 2.8-12mm CS-mount manual varifocal lens and 4X optical zoom, delivering sharp and clear images for close-up, industrial, and daily use. With plug-and-play design and no driver needed, it supports Windows, Linux, and Jetson Nano. Widely compatible with Lightburn, OpenCV, and live streaming software, it is perfect for machine vision, USB video microscope, industrial inspection, monitoring, and online broadcasting.

Support Multi System & Software

-No driver required, plug and play

- Support Live Streaming Software, Skype, Zoom, Facetime, Youtube...

- Support many APPs and software, Amcap, OpenCV, PC default webcam software, VLC, V4L2...

- Compatible with many operating systems, including Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS...

Widely used in applications where high resolution images and videos with autofocus are required, such as industrial camera, video conferencing, live streaming, security, medical equipment, industrial inspection, scientific research and development, education and training, high resolution document scanning, high speed photography equipment, photo scanner ANPR camera, 3D printer, industrial machine vision, etc.
