16MP 5K USB2.0 Camera Module 139° HFOV Ultra Wide Angle Lens 4656x3496P UVC Webcam Plug and Play for PC Raspberry Pi Jetson Nano Industrial Machine &amp Multi OS

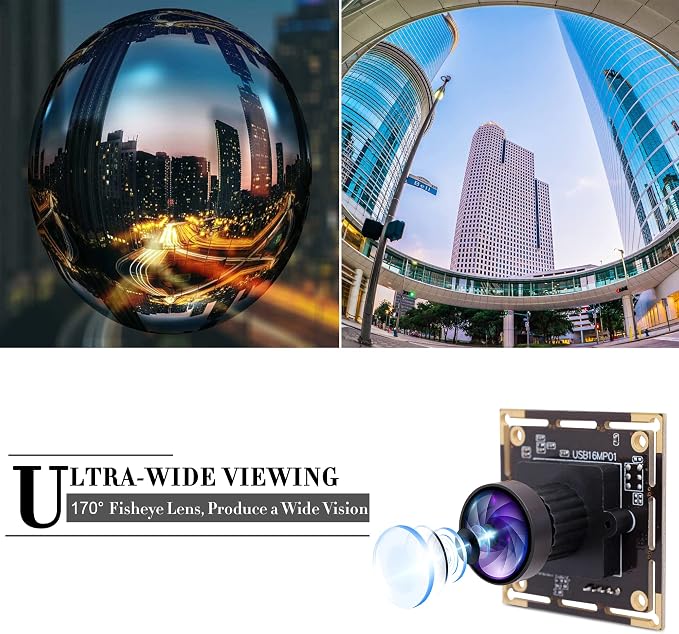

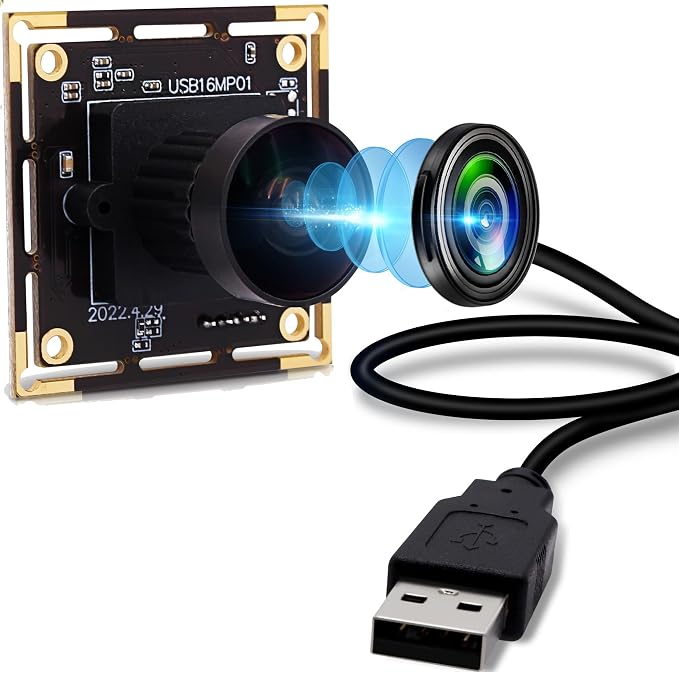

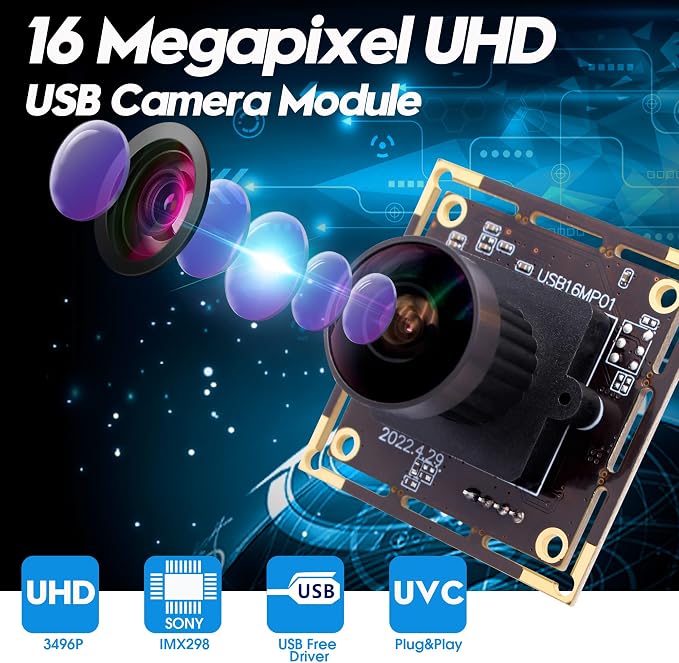

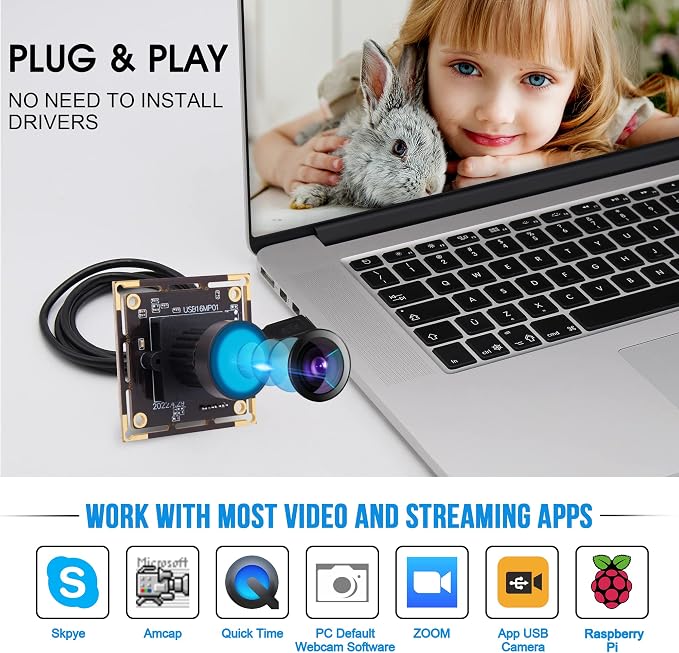

- High Definition Quality: Our 16Megapixel USB camera module incorporates a 1/2.8-inch IMX298 image sensor, ensuring sharp images and accurate color reproduction with a maximum resolution of 4656 x 3496. Its compact size of 38X38mm makes it ideal for embedded applications. - Wide-Angle Lens for Immersive Footage: Equipped with a 170-degree M12 lens, our camera module captures the most realistic image effects. It features a detachable 4-pin connector, 8 mounting holes, and a 1-meter USB cable. Additionally, the M12 mount lens allows for easy interchangeability of fixed focus camera lenses. - Advanced Image Sensor: With the 1/2.8" CMOS IMX298 image sensor, this USB camera module offers superior image quality and minimal color distortion, delivering detailed and precise visuals. It supports MJPEG or YUY2 picture format options, making it compatible with various personal and industrial video systems. The PCB design allows for enhanced physical compatibility compared to other cameras. - Plug & Play Convenience: This USB camera is UVC-compliant, enabling seamless connectivity to PCs, laptops, Android devices, or Raspberry Pi, using the provided USB cable. No extra drivers need to be installed. It is fully compatible with Windows, Linux, Mac OS, Android, supports OTG protocol, and integrates easily with Raspberry Pi. - Versatile Applications: Whether you need a camera for time-lapse video recording, robotic systems, or 3D printers, our 16-megapixel USB camera module is perfect for your needs. It is highly recommended for applications such as video surveillance systems, live streaming, video conferences, dashcams, and various other vision-related projects.

Product description

IFWATER USB Camera 16MP with 170 Degree Wide Angle USB Camera Module,UVC OpenCV Web Camera for Computer PC Desktop Laptop

IFWATER 16MP Wide Angle USB Camera for Computer,Mini UVC USB Video Lightburn Camera Module with 3.3ft/1m Cable for Laptop,PC,Raspberry Pi,Jetson Nano

IFWATER USB Camera 16MP Camera Module Security Industrial Webcam Plug and Play For Windows Android Mac Linux Raspberry Pi Laptop PC Camera

170 Degree Fisheye Lens USB Webcam 16MP With CMOS IMX298 Color Sensor HD Surveillance Camera For OCR Passpord Scanning Security CCTV Camera Module

New Design Ultra 4656X3496P 16MP Webcam CMOS IMX298 Color Sensor Mini PC USB Camera for Machine Vision Camera Module For QCR Document Scanning

16 Megapixel Ultra HD Resolution USB Camera Module With Cmos IMX298 Image Sensor, USB2.0 Plug&Play for OpenCV Live Streaming Conferencing PC Webcam

IFWATER 16MP USB Camera Module Embedded USB Webcam Camera Module With 120degree NO Distortion Lens for Industrial,Medical Equipment,Bar Code Scan,etc.

Specification

Model: IF-USB16MP01-L170

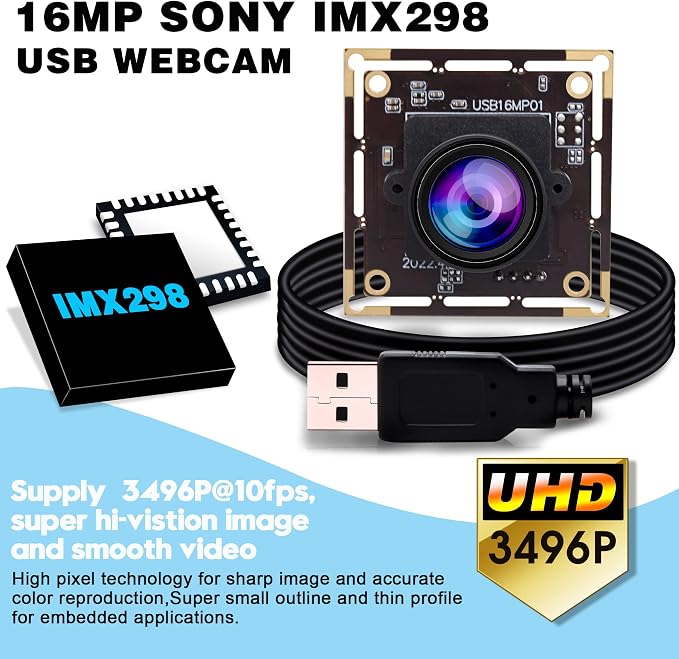

Sensor: CMOS IMX298

Sensor Size: 1/2.8inch, Pixel Size: 1.12um

Image area: 6.4mm x 5.3mm

Max. Resolution: 4656(H) X 3496(V) 16Megapixel

Compression format: MJPEG / YUY2（YUYV）, Min illumination: 0.5lux

Shutter Type: Electronic rolling shutter / Frame exposure

Connecting Port type: USB2.0 High Speed

Free DriveProtocol: USB Video Class（UVC）

AEC: Support, AWB: Support, AGC: Support

Adjustableparameters:

Brightness,Contrast, Saturation, Hue, Sharpness, Gamma,

Gain, White balance, Backlight Contrast, Exposure

Resolution & frame:

4656 x 3496MJPEG@10fps YUY2 1fps4208 x 3120MJPEG@10fps YUY2 1fps

4160 x 3120 MJPEG@10fps YUY2 1fps4000 x 3000MJPEG@10fps YUY2 1fps

3840 x 2160 MJPEG@10fps YUY2 1fps3264 x 2448MJPEG@10fps YUY2 1fps

2592 x 1944 MJPEG@10fps YUY2 1fps2320 x 1744MJPEG@30fps YUY2 1fps

2048 x 1536 MJPEG@30fps YUY2 1fps1920 x 1080MJPEG@30fps YUY2 5fps

1600 x 1200 MJPEG@30fps YUY2 5fps1280 x 960MJPEG@10fps YUY2 10fps

1280 x 720 MJPEG@30fps YUY2 10fps1024 x 768MJPEG@10fps YUY2 10fps

800 x 600 MJPEG@30fps YUY2 15fps640 x 480MJPEG@30fps YUY2 30fps

Lens Parameter: Standard 1.95mm lens ,optional other M12 Mount lens

Power supply: USB BUS POWER4P-2.0mm socket

Operating Voltage: DC5V, Working Current: 150mA~240mA

Working temperature: -10～70℃, Storage temperature: -20～85℃

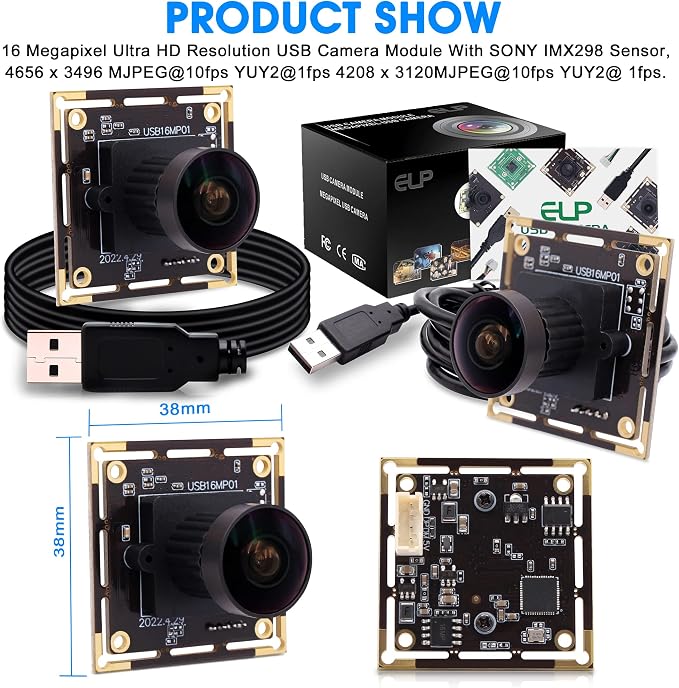

Boardsize/Weight: 38X38mm（Compatible 32X32mm）/ about 30g, Cable: Standard 1M

The 16 megapixel USB camera module resolution is awesome:

1. It have a detachable 4 pin connector in case you didn’t want to do the USB route. This board has decent build quality, it is sturdy and has 8 mounting holes. it also have a 1 meter usb cable.

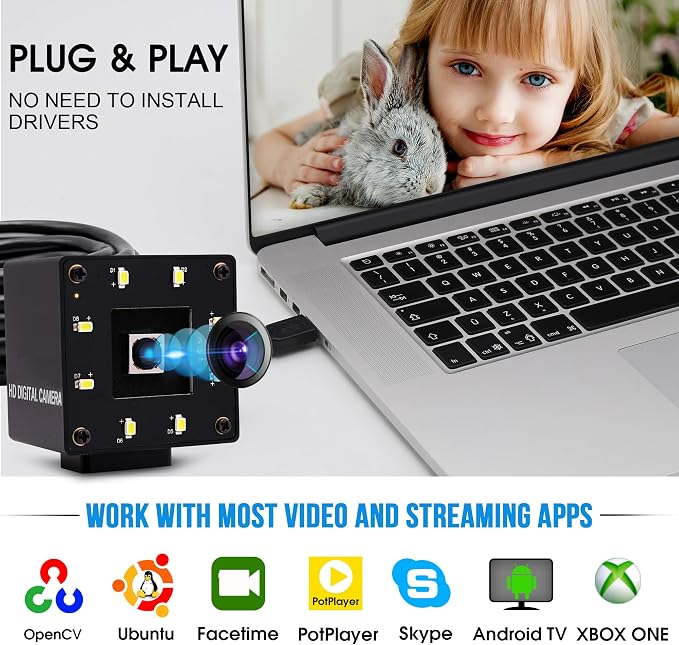

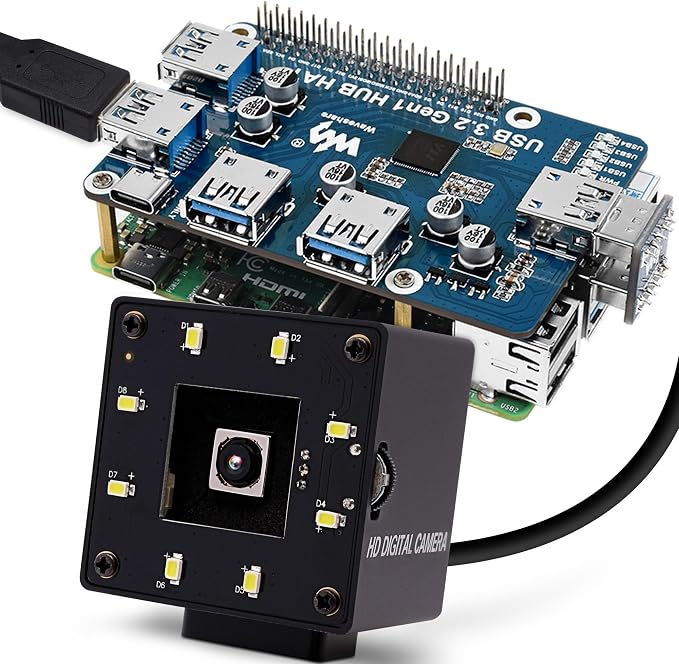

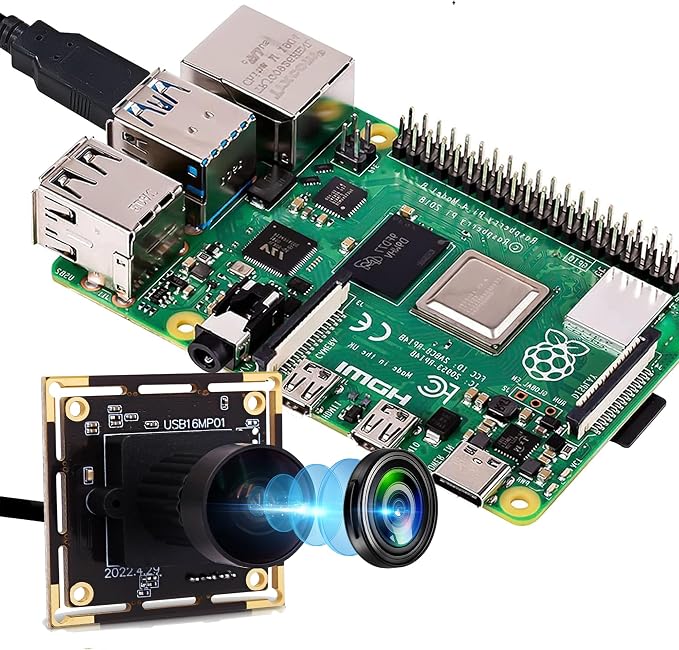

2. Works well on both MAC and Jetson Nano/Ubuntu. It is plug-and-play compatible with Windows and Linux, including the Raspberry Pi.

3. This camera has two different hole patterns in the PCB design that allow more physical compatibility than other cameras.

4. This camera adjustable focus distance via the screw in objective lens. Held with a little screw.

5. In a well-lit room or sunlight, the image quality is excellent.

6. If you are looking for a camera to monitor and record timelapse videos, small high resolution camera module with physical and interface flexibility or use to 3D printer, robotics applications in electronics and mechatronics education, this 16mp usb camera module fits the bill.

IFWATER 16mp usb camera for Industrial, Medical Equipment Windows Mac Raspberry Pi, Widely Application in All Fields:

Widely Used in High resolution images and video with autofocus capabilities are required, Like industrial camera, Video Conferencing, Live Streaming, Security, Medical device, Industrial Inspection, Scientific research and development, Education and Training, High Resolution Document Scan, High-speed photographic apparatus, Photoscanner ANPR Camera, 3D Printer, Industrial Machine Vision etc.
