120fps Global Shutter CameraUSB3.0/2.0 High Speed Color Webcam10X 5-50mm Manual Zoom Lens1920x1200 Max ResolutionWide System Support for High Speed Motion Analysis Golf Swing 3D Printer

- Global Shutter with High Frame Rate: Built-in AR0234 global shutter sensor captures clear images. It supports 120FPS and 200FPS high frame rate, perfectly suited for high speed motion analysis and dynamic scene recording. - USB 3.0 Interface & Rich Resolution Options: Adopts USB 3.0 for smooth data transmission, max resolution up to 1920x1200. Compatible with MJPEG and YUY2 formats, and maintains stable performance when connected via USB 2.0 as well. - 10X Zoom Lens & Adjustable Images: The 5-50mm 10X manual zoom lens allows easy focal length adjustment. Multiple adjustable image parameters help you optimize picture quality to fit your shooting demands. - Driver-free & Multi-system Support: Plug and play design saves your time.Works seamlessly with laptops, Android devices, Raspberry Pi and more industrial or DIY platforms, ideal for machine vision, industrial monitoring, computer vision projects and home experimental applications. Standard 20-PIN connector. - Stable Performance for Professional Scenarios: Built for long time continuous operation, delivering stable video output and clear imaging for golf swing analysis, 3D printer monitoring, industrial inspection and other high speed capture tasks. - This global shutter camera sharply captures rapid motion for golf swing analysis, mechanical testing, 3D printing, laser engraving, and tracking fast-moving parts like fan blades, rotating shafts and relays. Perfect for inspection, maintenance recording and motion analysis. - Simple focus and light tuning is required (the sensor needs ample lighting), yet the high-clarity footage makes quick setup worthwhile. Boasting a robust solid shell, it supports flexible mounting: three sides have standard bracket holes, with four metric corner screws on each panel. Three built-in controls adjust zoom (wide/tele) and iris aperture to fine-tune light exposure.

Product description

IFWATER Industrial High Speed USB3.0 Camera,120FPS 200FPS Ultra Fast Shooting Webcam for Industrial High-Speed Motion Analysis, Plug and Play

120fps Camera Industrial Global Shutter Color Webcam, USB3.0 Low Latency Industrial Camera, Anti-Distortion for Factory Fast Moving Object Detection

Global Shutter 1920x1200 HD Industrial Resolution USB3.0 Camera, IFWATER Color USB3.0 Webcam for Industrial Precision Imaging & Detail Detection

Industrial Multi-System Compatible USB3.0 Camera, Plug and Play Global Shutter Webcam for Industrial Machines & Intelligent Equipment

Professional Industrial Visual Detection Webcam, High Speed Global Shutter Camera for Factory Inspection, Machine Vision & Industrial Motion Tracking

IFWATER Ultra High Speed Camera,120FPS 200FPS Fast Shooting Webcam, Plug and Play Multi System Compatible for High Speed Motion Analysis Industrial

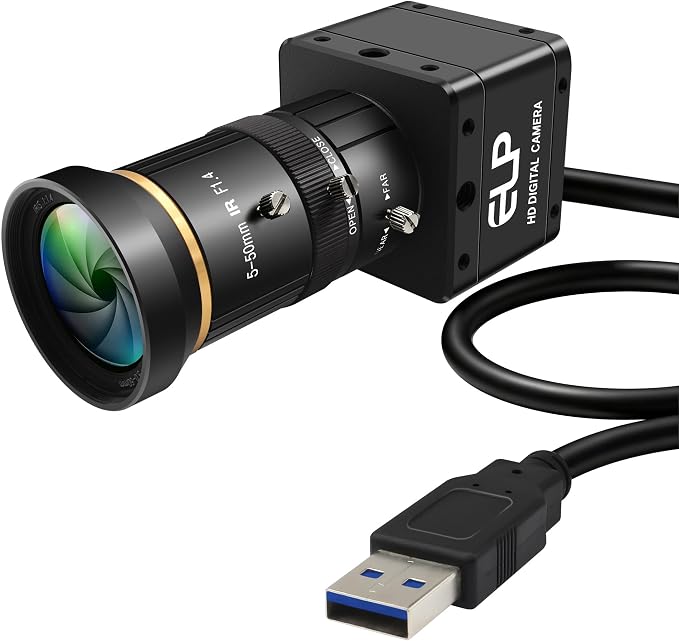

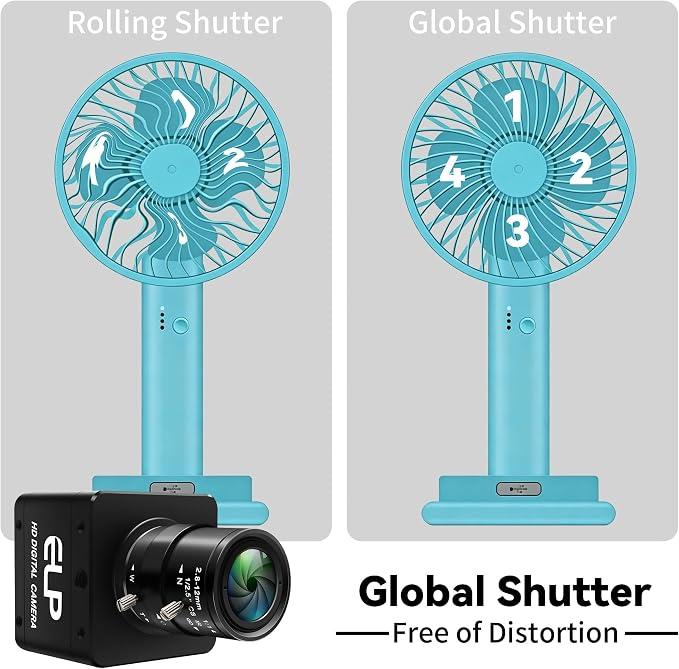

2.3Megapixels Global Shutter USB 3.0 Camera features AR0234 sensor, max 1920×1200 resolution and up to 120FPS/200FPS high frame rate for distortion-free fast motion capture. Built with 5-50mm 10X manual zoom lens and adjustable image settings, it supports MJPEG & YUY2 formats. Plug and play design works with Windows, Linux, Mac OS and Android. Wide temperature tolerance ensures stable performance for 3D printing, motion analysis and industrial machine vision.

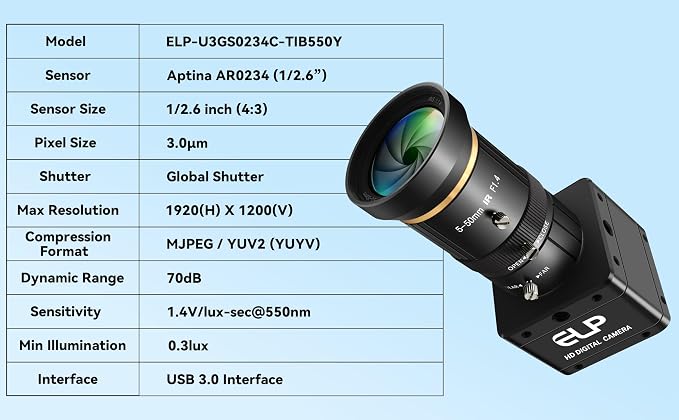

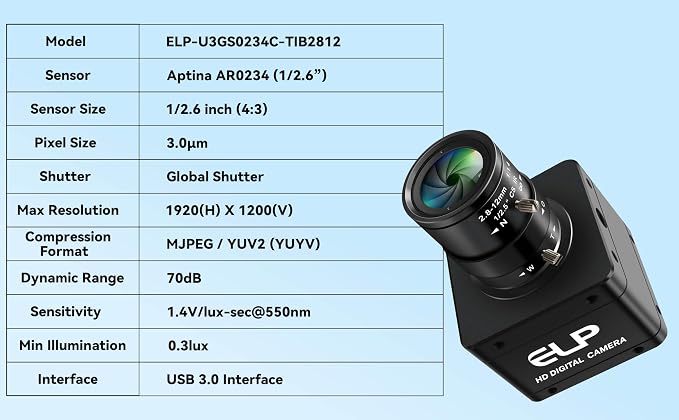

2.3MP Global Shutter Color USB3.0 Cameras

Sensor: 1/2.6 Inches AR0234 Sensor

Shutter Type: Global Shutter

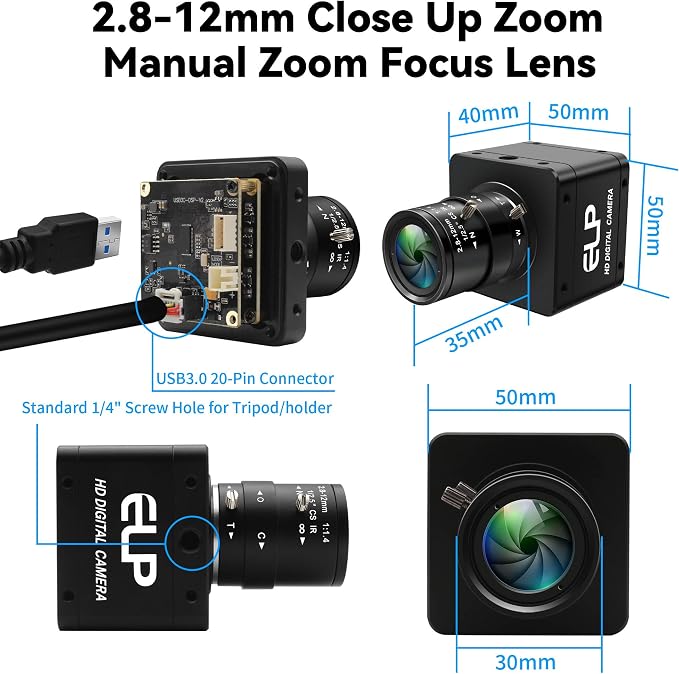

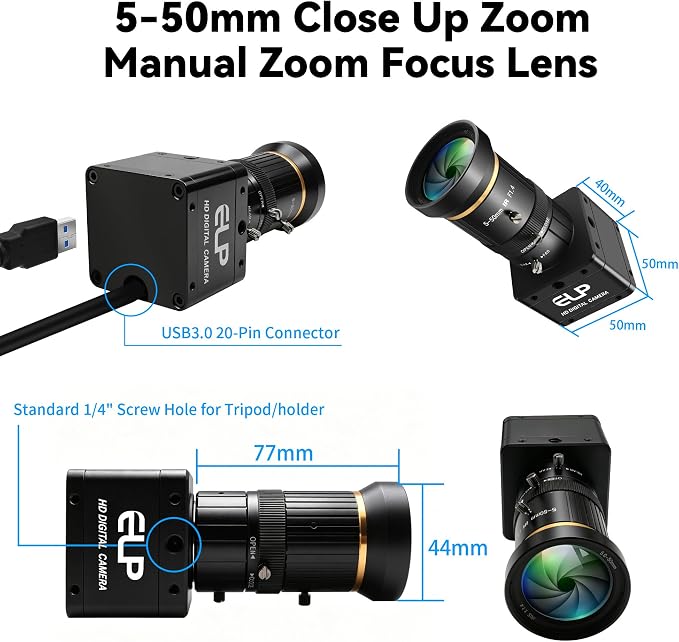

Interface & Connector: USB 3.0 20-PIN Connector

Max Resolution: 1920(H) *1200 (V)

Default Resolution:1920(H) *1200 (V)

Dynamic Range:70 dB

Compression format:MJPEG/YUV2(YUYV)

Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure

Power Supply ：USB3.0 20-Pin Power Supply

Operating Voltage： DC 5V

Working Current：165mA- 210mA

Working Temperature: -10°C to 70°C, Storage Temperature：-20°C to 80°C

Operating System Request: Win10/Win11 etc. Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later , Android 4.0 or above with UVC

Performance:

Resolution & Frame Rate under USB3.

1920x1200 MJPEG 120fps/YUY2 80fps 1920x1080 MJPEG 120fps/YUY2 80fps

1600x1200 MJPEG 120fps/YUY2 80fps 1280x960 MJPEG 120fps/YUY2 120fps

1280x720 MJPEG 200fps/YUY2 200fps 640x480 MJPEG 200fps/YUY2 200fps

512x512 MJPEG 120fps/YUY2 120fps

Resolution & Frame Rate under USB2.0

1920x1200 MJPEG 120fps/ YUY2 5fps 1920x1080 MJPEG 120fps/ YUY2 5fps

1600x1200 MJPEG 120fps/ YUY2 5fps 1280x960 MJPEG 120fps/ YUY2 5fps

1280x720 MJPEG 200fps/ YUY2 10fps 640x480 MJPEG 200fps/ YUY2 30fps

512x512 MJPEG 120fps/ YUY2 10fps

1: If you encounter lighting issues during use: simply turn the knob at the bottom of the lens to adjust the aperture and control brightness. You may also turn the knob on the other end for manual focusing.

2: If you use this device for DIY projects such as 3D printer monitoring, please ensure the environment is well-lit.

3: This camera is extremely easy to install and compatible with all major platforms. The adjustable functions ensure you get the best angle and lighting for your needs.

4: Wide Compatibility for Multi Devices: Works seamlessly with laptops, Android devices, Raspberry Pi and more industrial or DIY platforms, ideal for machine vision, industrial monitoring, computer vision projects and home experimental applications.
