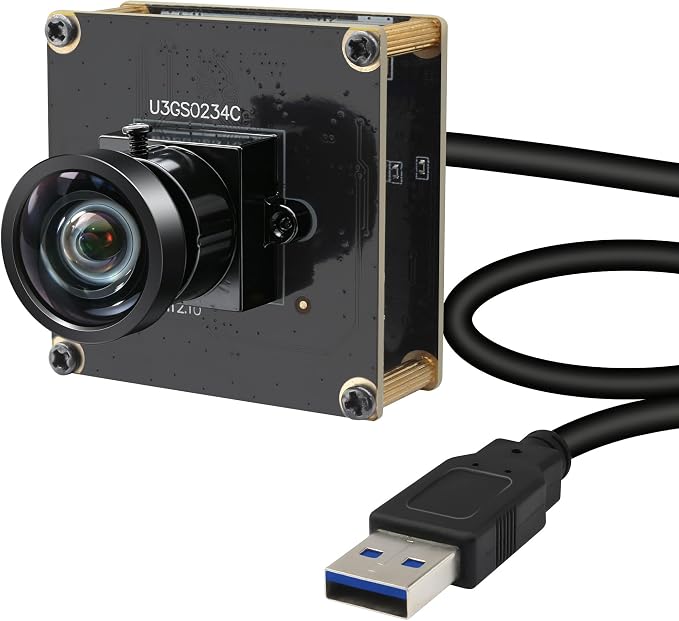

120fp Global Shutter USB3.0 High Speed Industrial Camera1200P HD Webcam with 112°HFOV No Distortion Wide LensUVC Plug&ampPlay for Motion Analysis Factory Industrial Visual Detection Golf Swing | 19

- 120/200fps Global Shutter Sensor： Built-in 1/2.6" AR0234 global shutter sensor, 1920×1200 max resolution. Up to 120fps full resolution & 200fps high-speed frame rate, no motion blur for fast object capture. - 112° Undistorted Wide Lens & Adjustable Image Settings： 112° HFOV distortion-free lens with 70dB dynamic range. Support MJPEG/YUY2 encoding; tweak exposure, white balance, sharpness and other image parameters freely. - Stable USB3.0 Low Latency Transmission： USB3.0 20-pin interface, USB 5V power supply, Adopts USB 3.0 for smooth data transmission, max resolution up to 1920x1200. Compatible with MJPEG and YUY2 formats, and maintains stable performance when connected via USB 2.0 as well. - UVC Plug & Play, Wide OS Compatibility： Driver-free UVC camera, works with Windows, Linux, Mac OS and Android. Stable running at -10℃~70℃ for long-hour industrial use. - Multi-scene Professional Machine Vision Camera： Ideal for industrial visual inspection, high-speed motion analysis, golf swing recording, 3D printer monitoring and scientific motion capture projects.

Product description

2.3MP Global Shutter USB 3.0 Camera, 120FPS/200FPS High Speed Webcam, Wide Angle No Distortion Lens, Plug and Play for Machine Vision, 3D Printer

IFWATER 1200P Global Shutter USB3.0 Webcam, 120/200FPS High Frame Rate Color Camera Module for Industrial Inspection & Motion Analysis

IFWATER 2.3MP Global Shutter USB Camera Module, 120FPS 1920x1200 AR0234 Webcam with Wide Angle No Distortion Lens for Raspberry Pi Jetson Nano.

Multi-System Compatible USB3.0 Camera Module, Plug and Play Global Shutter Webcam for Computer Industrial Equipment, 1200P Close-up USB Camera

IFWATER 120fps High Speed Global Shutter USB3.0 Camera Module, 200FPS USB3.0 Camera Module No Motion Blur for Motion Analysis, Plug and play

120fp Global Shutter High Speed Industrial Camera,1200P HD Webcam with 112°HFOV No Distortion Wide Lens,UVC Plug&Play Motion Industrial Golf Swing

IFWATER 2.3MP Global Shutter USB 3.0 Camera features AR0234 sensor, max 1920×1200 resolution and up to 120FPS/200FPS high frame rate for distortion-free fast motion capture. Built with wide angle no distortion lens and adjustable image settings, it supports MJPEG & YUY2 formats. Plug and play design works with Windows, Linux, Mac OS and Android. Wide temperature tolerance ensures stable performance for 3D printing, motion analysis and industrial machine vision.

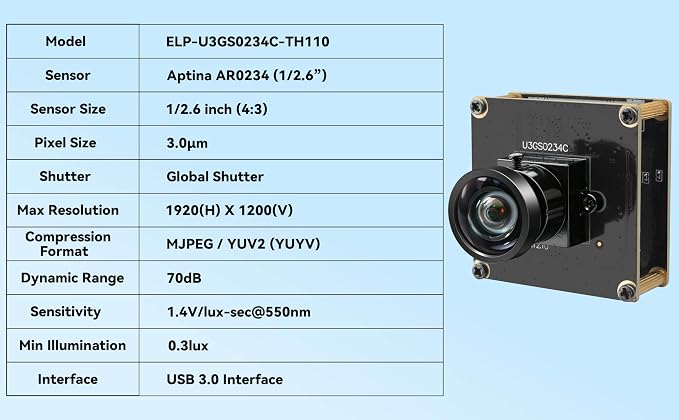

2.3MP Global Shutter Color USB3.0 Cameras

Sensor: 1/2.6 Inches AR0234 Sensor

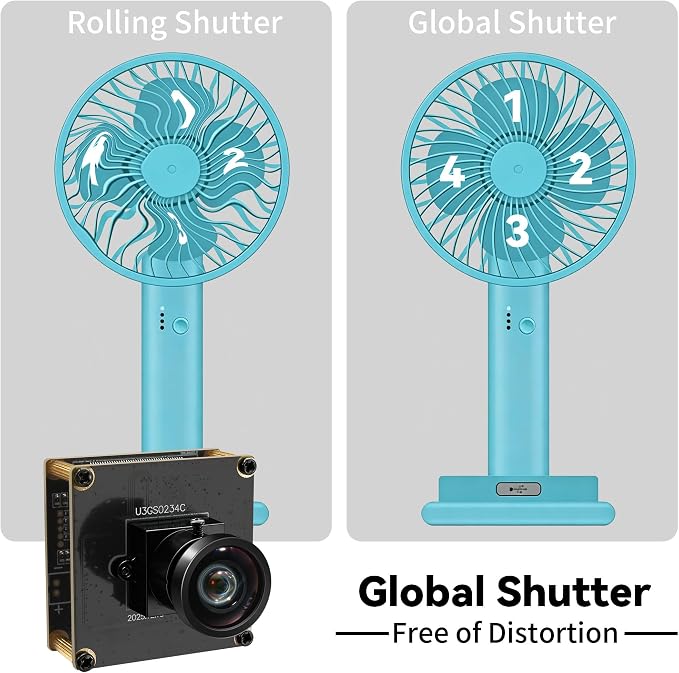

Shutter Type: Global Shutter

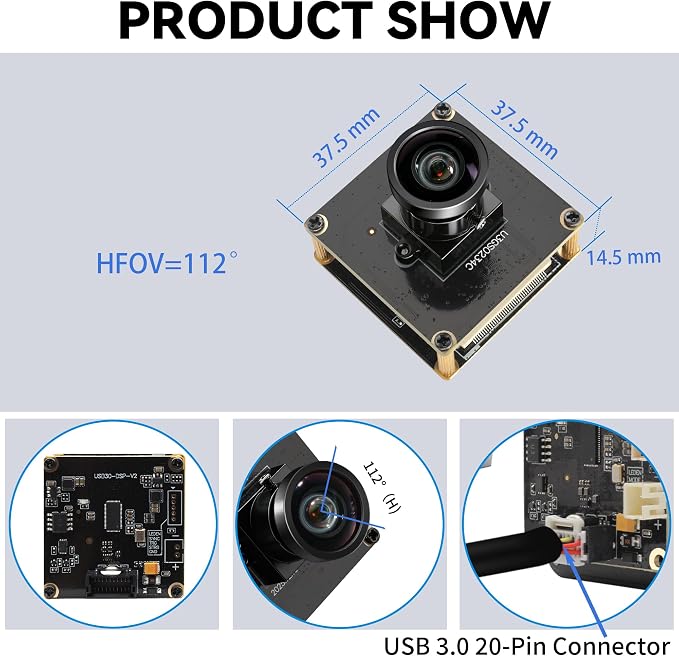

Interface & Connector: USB 3.0 20-PIN Connector

Max Resolution: 1920(H) *1200 (V)

Default Resolution:1920(H) *1200 (V)

Dynamic Range:70 dB

Compression format:MJPEG/YUV2(YUYV)

Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure

Power Supply ：USB3.0 20-Pin Power Supply

Operating Voltage： DC 5V

Working Current：165mA- 210mA

Working Temperature: -10°C to 70°C, Storage Temperature：-20°C to 80°C

Operating System Request: Win10/Win11 etc. Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later , Android 4.0 or above with UVC

Performance:

Resolution & Frame Rate under USB3.

1920x1200 MJPEG 120fps/YUY2 80fps 1920x1080 MJPEG 120fps/YUY2 80fps

1600x1200 MJPEG 120fps/YUY2 80fps 1280x960 MJPEG 120fps/YUY2 120fps

1280x720 MJPEG 200fps/YUY2 200fps 640x480 MJPEG 200fps/YUY2 200fps

512x512 MJPEG 120fps/YUY2 120fps

Resolution & Frame Rate under USB2.0

1920x1200 MJPEG 120fps/ YUY2 5fps 1920x1080 MJPEG 120fps/ YUY2 5fps

1600x1200 MJPEG 120fps/ YUY2 5fps 1280x960 MJPEG 120fps/ YUY2 5fps

1280x720 MJPEG 200fps/ YUY2 10fps 640x480 MJPEG 200fps/ YUY2 30fps

512x512 MJPEG 120fps/ YUY2 10fps

· High Speed Usb Camera Module Motion Blur Free Industrial Camera Module AR0234 Sensor.

· 120fps 200fps Global Shutter Camera 1920x1200 Uvc Plug Play .

· Wide Angle Camera Undistorted Lens Machine Vision Inspection Camera.

· 3D Printer Camera Raspberry Pi Jetson Nano Industrial Vision Webcam.

· MJPEG YuYV Adjustable Exposure White Balance Embedded Camera.

1: If you encounter lighting issues during use: simply turn the knob at the bottom of the lens to adjust the aperture and control brightness. You may also turn the knob on the other end for manual focusing.

2: If you use this device for DIY projects such as 3D printer monitoring, please ensure the environment is well-lit.

3: This camera is extremely easy to install and compatible with all major platforms. The adjustable functions ensure you get the best angle and lighting for your needs.

4: Wide Compatibility for Multi Devices: Works seamlessly with laptops, Android devices, Raspberry Pi and more industrial or DIY platforms, ideal for machine vision, industrial monitoring, computer vision projects and home experimental applications.
