10Gbps PCIe USB 3.2/3.1 Gen 2 Expansion Card 7-Ports (2X USB C and 5X Type-A) PCI Express Card Type C PCI-e USB3 Hub Controller Adapter 4 Independent Power Module

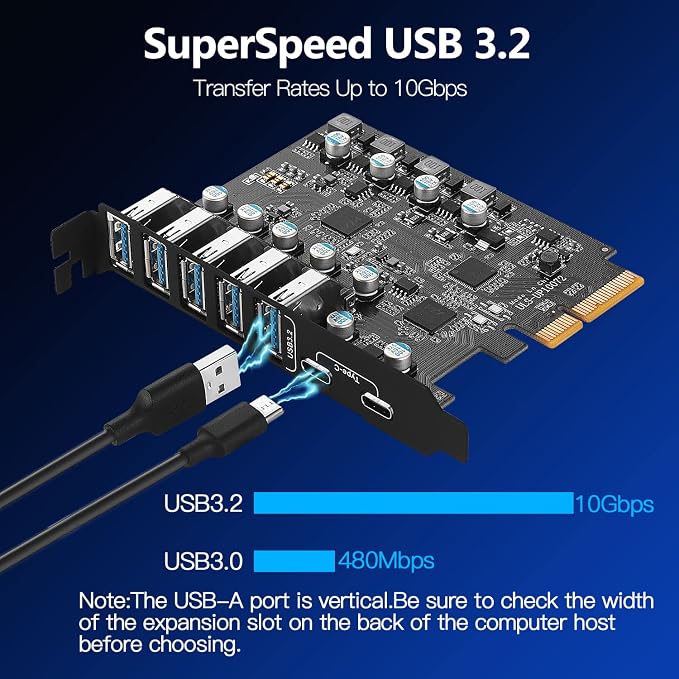

- PCIE USB Expansion Card: Upgrade your computer to 7 USB ports (2 x USB C, 5 x USB A) in one step. Solve the shortage of host USB ports and connect various USB devices like keyboard, mouse, printer, smartphone, game controller,etc - Super Speed USB Ports: This card offers a transmission speed of up to 10 Gbps bandwidth, twice as fast as USB 3.0. It enables quick transfer of high-definition photos, videos, and files in seconds. Note: Doesn't support Thunderbolt protocol or monitor - Extensive Compatibility: USB ports support USB 3.1, 3.0, 2.0 devices. USB PCIe card Supports PCIe 3.0/2.0 motherboards, PCI Express X4 to X16 slots. OS compatible: Windows 7/8/10, Mac OS 4.1/5.1/7.1/8.1. If issues, let me know - Easy Installation: The PCIE card gets power from the PCI Express slot, no external supply needed. Installation is effortless.Each port has a safety element for overcurrent and static protection, ensuring reliable usage - What Can You Get: 1x PCIe USB 3.2/ USB 3.1 Gen 2 Card,1x CD drive,2x screws. We offer friendly customer service and 24/7 technical support,This card is backed for 2-Years

Product description

Installation Steps

Product advantages:

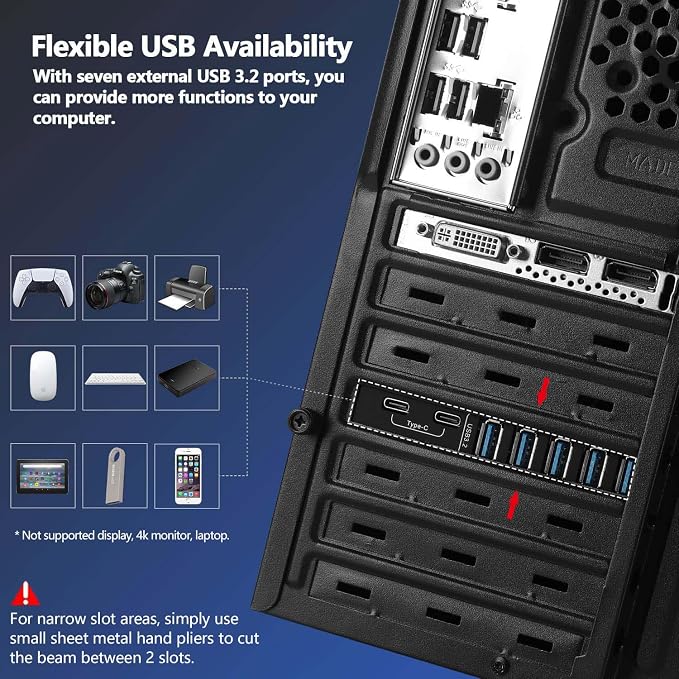

1. Add 7 ports on the desktop through the PCI Express slot, the port has a maximum data transmission speed of 10Gbps to achieve a fast connection.

2. The usb port can draw power from the PCI Express slot, eliminating the need to plug in any additional power cables from the power supply.

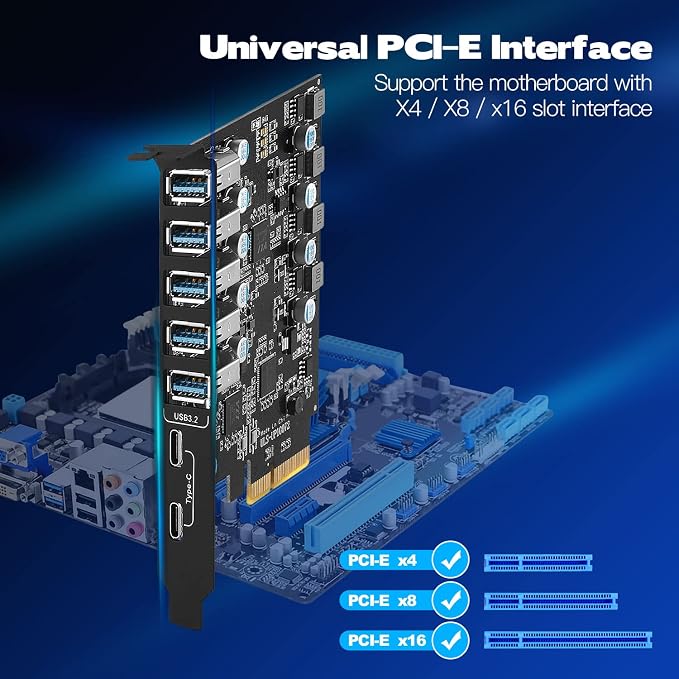

3. Compatible with PCIe 2.0/3.0 versions, compatible with PCIe x4, x8, x16 slots.

4. To ensure easy installation on any computer, we additionally include a standard 12 cm bracket for desktop PC chassis (pre-installed).

Supported Operating Systems:

Supports Windows XP/Vista/2008 Server/7/8/10/Linux/Mac OS 4.1/5.1/7.1/8.1 systems and is plug-and-play, requiring no driver installation for most systems. Note: Windows Vista/XP/7 require additional driver installation, while Windows 8/10/11 don't. （If you encounter compatibility issues/not working.)

Important Notes:

1. Never install this PCIe card while the computer is powered on.

2. If the card malfunctions, first inspect the motherboard's PCI-E slot for faults.

3. USB device/PCI-E slot versions may limit the card's data transfer throughput/performance.

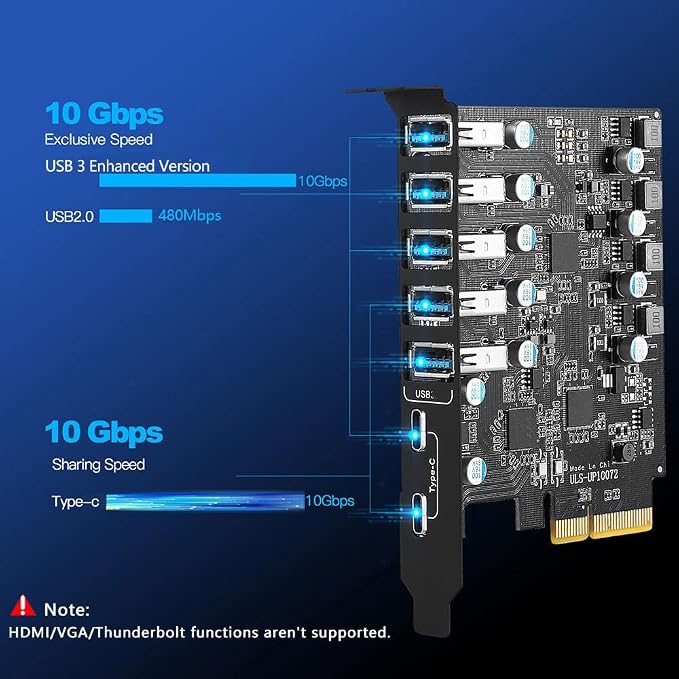

4. This USB PCIe card supports data transfer only. It does not support PD fast charging or video signal transmission (HDMI/VGA/Thunderbolt display conversion). Please note this when purchasing.

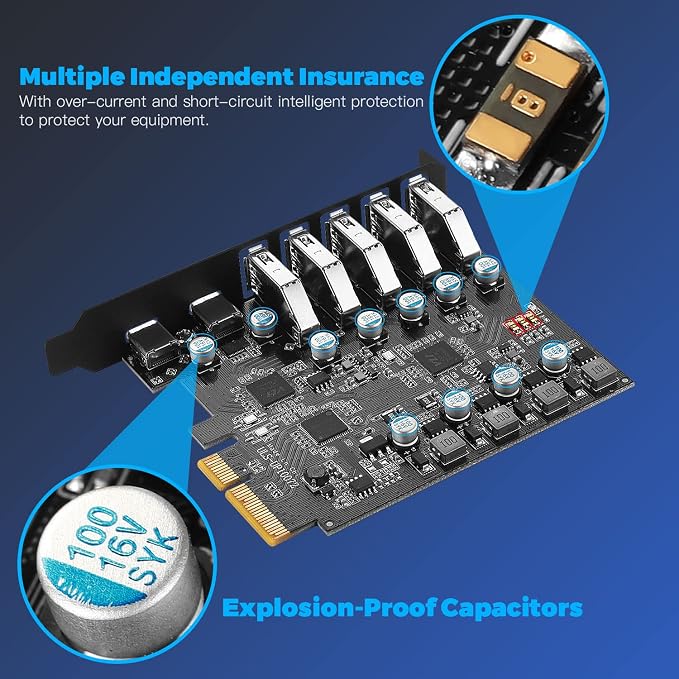

Explosion-proof capacitors are made of polymer dielectric materials,Each interface is equipped with a voltage-regulating capacitor.Can provide good temperature control during operation and ensure stable power supply for each interface.

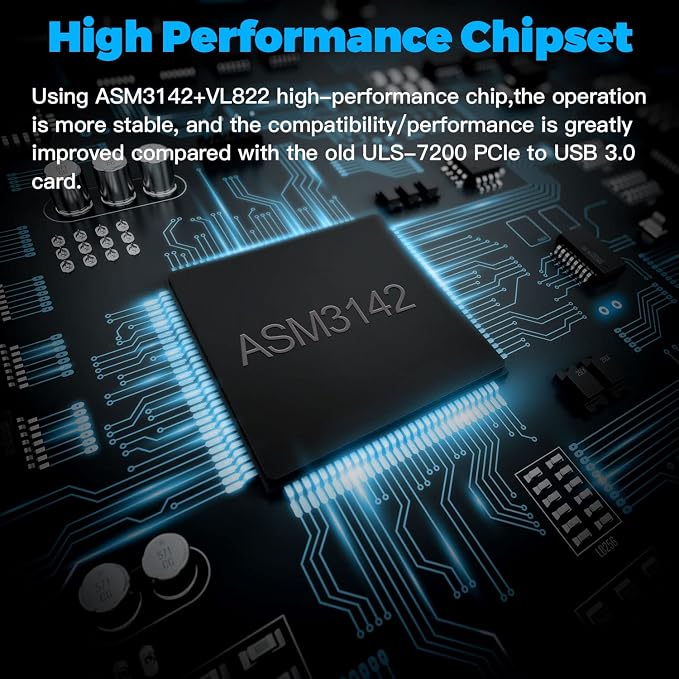

It adopts ASM3142 main control intelligent chip, which does not occupy computer CPU resources and can work independently with low power consumption. The card can easily handle some large files and enhance your work efficiency in all aspects.

USB C card is compatible with a variety of mainstream Windows/Linux/Mac OS operating systems, and can be used after Win 8/10/11/Mac OS X or above without driver installation.

Turn off the computer, unplug it from the power source, and remove the host outside case.

Find a PCI Express X4 or higher specification slot that fits the card.

Insert the card down into the PCI-E slot.

Tighten the screws on the side of the bracket with a screwdriver, put the host outside case back on the computer, and then insert the plug into the socket.

Note:

1. After reviewing the product details,Please check the port size of the computer chassis baffle to avoid poor installation and excessively small PCI-E expansion cards.

2. If the product itself is damaged, it is still within the 2-years-w-arranty period, you can directly contact our Online support for maintenance.

Package Contents:

1 * USB 3.1 Gen 2 Expansion Card

1 * Screw

1 * User Manual
