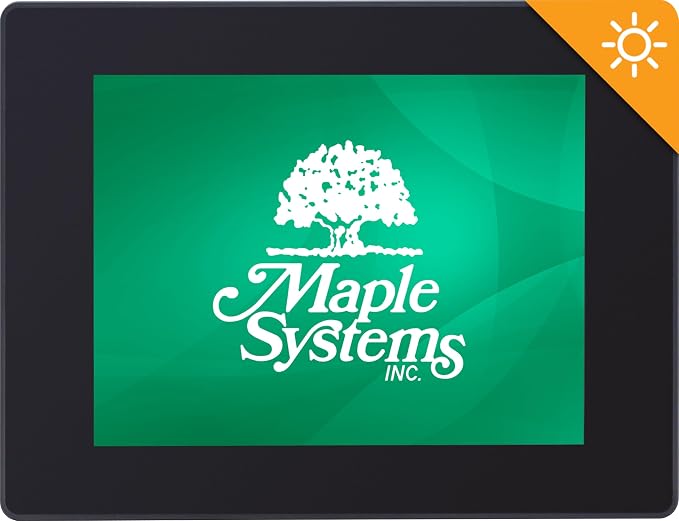

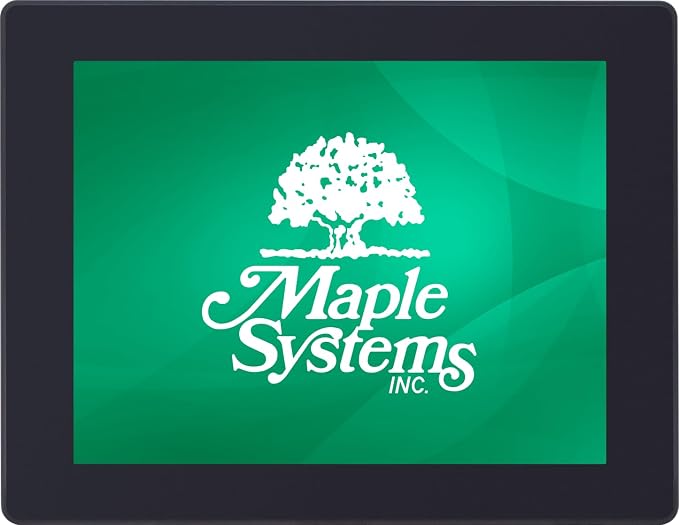

10.4 Panel Mount Industrial Touchscreen Monitor 1000 Nits High Brightness Display Steel Chassis Multiple Display Inputs MON1010APHv2

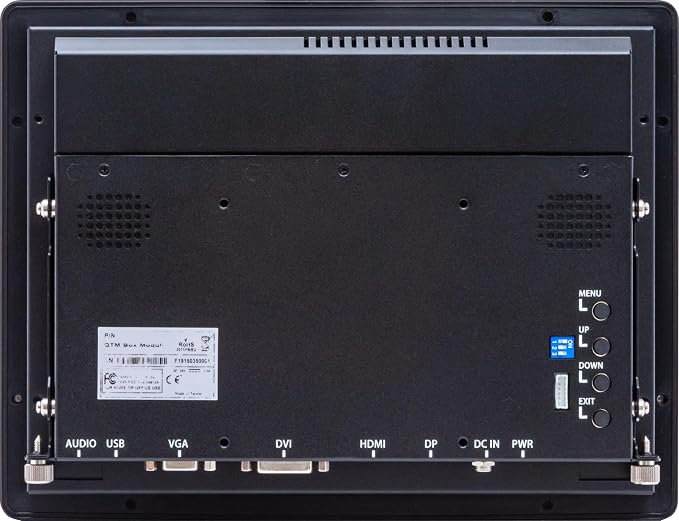

- DISPLAY SPECS: 10.4-inch TFT LCD with 1000 nits brightness, XGA resolution (1024x768), and 16.2M colors for superior image quality and sunlight readability. - TOUCH INTERFACE: Projected capacitive touchscreen with USB interface, offering precise and responsive touch control for industrial applications. - CONNECTIVITY: Multiple display inputs including HDMI 1.4a, DisplayPort 1.2, DVI-D, and VGA for versatile integration options. - RUGGED DESIGN: Durable black steel chassis with IP65-compliant front panel, suitable for panel mounting or VESA 100x100 mounting options. - OPERATIONAL SPECS: Operates on 12-24VDC power input, consuming 11.5W with wide operating temperature range of 32-104°F for industrial environments.

Product description

Why choose an industrial monitor instead of a cheaper consumer model? The answer is that industrial monitors differ significantly from standard PC monitors in design, durability, and functionality. Industrial monitors are specifically engineered to withstand harsh environments and offer features that cater to specific industrial needs. Having so many variations on the market can make it hard to know how to choose an industrial monitor that will check all the boxes for your project needs.

Here are 10 important factors to consider: 1. Connection ports, 2. Size and resolution, 3. Operating temperature, 4. Touch input, 5. Mounting options, 6. Optical bonding, 7. Brightness, 8. Viewing angle, 9. Enclosure material, and 10. Certification.

Optical bonding is a process where a layer of optically-clear resin is used to bond the touchscreen glass or plastic cover directly to the LCD or OLED panel beneath it. This technique eliminates the air gap between the layers, creating a single, solid piece.

By eliminating this air gap between the LCD panel and protective glass, condensation that leads to display fogging in hot and humid environments is stopped. Heat is more evenly distributed, and internal display glare, naturally caused by the greenhouse effect, is prevented.

In cold weather applications, the bonding process prevents separation between the display and cover glass, keeping the display strong after years of use.

Our Industrial touch screen monitors are designed and tested for harsher environments making them much more rugged, compared to typical “office” monitors. They are designed to withstand prolonged shock & vibration, a wide temperature range, and protection from water and dust. All of our monitors can be panel mount, or VESA mounted, depending on your application.

Our high brightness/sunlight readable monitors are ideal for applications in Industrial Automation, Healthcare, Finance/Banking, Education, Gaming/Entertainment, Home Automation, Retail, and Transportation, and pair easily with our Box PCs and HDMI enabled Headless HMI.

All our monitors allow you to use gloves and act as touchscreens, reducing the need for a keyboard and mouse allowing for maximum freedom when designing a system.
