10.1 Capacitive Web HMI Panel 1024x600 Display 1000 nits Class 1 Div 2 Rated WP4101AP

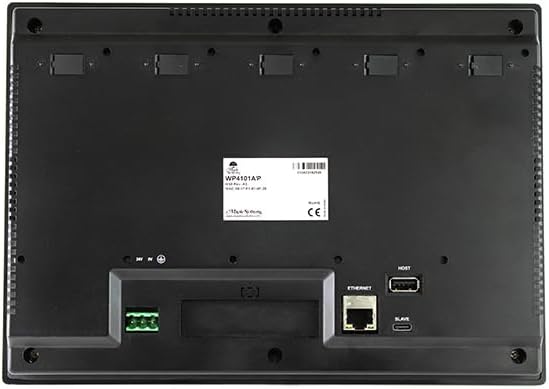

- DISPLAY FEATURES: 10.1-inch WSVGA TFT display with 1024 x 600 resolution, 16M colors, and ultra-bright 1000 nit luminance for excellent visibility in all conditions. - PROCESSING POWER: Dual ARM Cortex-A9 CPU running up to 1GHz with GPU 2D/3D support, 1GB RAM, and 4GB eMMC storage for smooth operation. - RUGGED DESIGN: Features IP66-rated front panel with tempered glass capacitive touchscreen, withstanding vibrations up to 3G peak and shocks up to 25g acceleration. - CONNECTIVITY OPTIONS: Equipped with 10/100 Mbps Ethernet port, USB 2.0 Type-A host port, and USB 2.0 Type-C client port for versatile integration. - MOUNTING SPECIFICATIONS: Panel mount design with dimensions of 10.55 x 7.48 x 1.3 inches, requiring a panel cutout of 10.08 x 7.00 inches for installation.

Product description

Remote Desktop With Web HMI, Raspberry Pi, and noVNC

9 things to consider when choosing a Web HMI

Connecting a Maple Web HMI to an Arduino Web Server

What is a Web HMI?

You can use a Maple Systems Web HMI to remotely view and interact with the desktop operating system of desktop PC, such as a Raspberry Pi with the help of the Virtual Network Computing (VNC) protocol. This process entails using a local VNC server application and noVNC to enable the PC to function as a gateway for remote access the Web HMI can connect to and visualize.

Web HMIs (Human-Machine Interfaces) offer a versatile and secure means to extend access to a central server. Designed for industrial applications, Web HMIs are durable, cost-effective, and user-friendly. Here are 9 things to consider when choosing a Web HMI 1-Web Browser, 2-Operating system, 3-Display, 4-Performance, 5-Input Method, 6-Operating temperature, 7-Security, 8-Support resources, and 9-Certifications.

Maple Systems’ Web HMIs can connect to a web server hosted by an Arduino microcontroller development board when paired with a compatible Ethernet Shield. Configure the web server to display the status of the GPIO (General-Purpose Input/Output) pins on the Web HMI, enabling users to interact with a running Arduino program.

The Web HMI is an alternative to the traditional operator interface panel. Sleek, client-only devices, Web HMIs offer unparalleled flexibility, accessibility, and efficiency.

With Web HMIs, extensive configuration is a thing of the past. Forget about software installations, licensing issues, and driver problems. Choosing a Web HMI can enhance efficiency while boosting security by simplifying the installation process and reducing vulnerabilities.

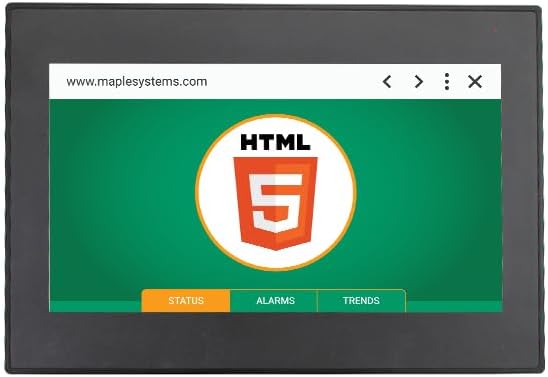

Maple Systems’ Web HMIs provide the rugged build of an industrial touchscreen with the versatility of a Chromium-based web browser, ensuring reliable access to critical data even in the toughest environments.
