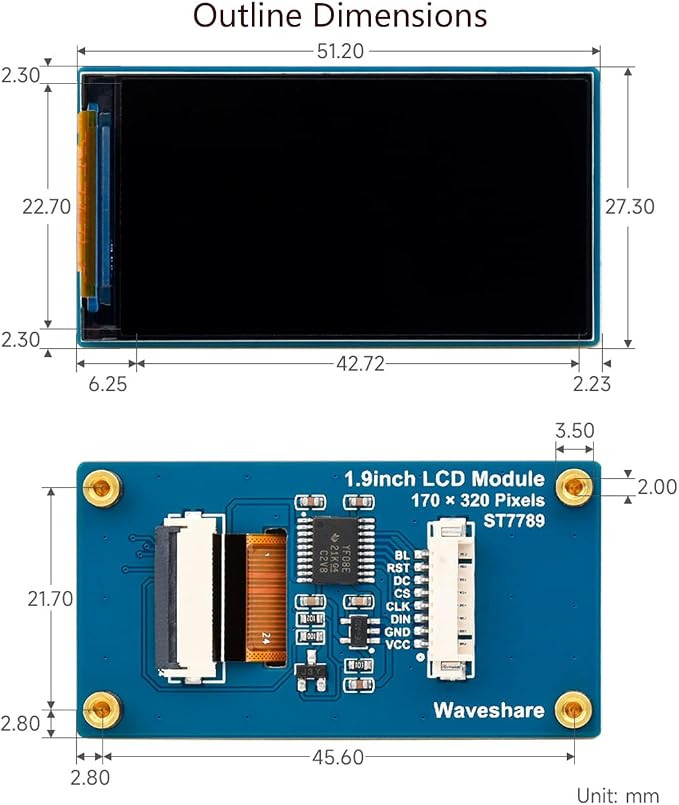

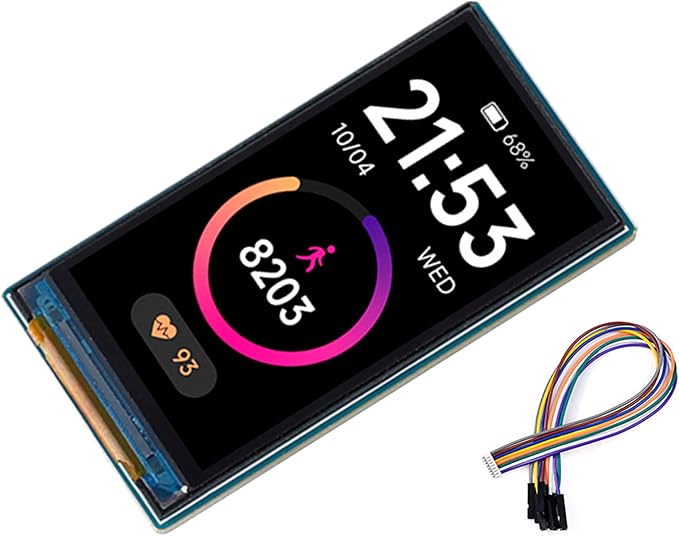

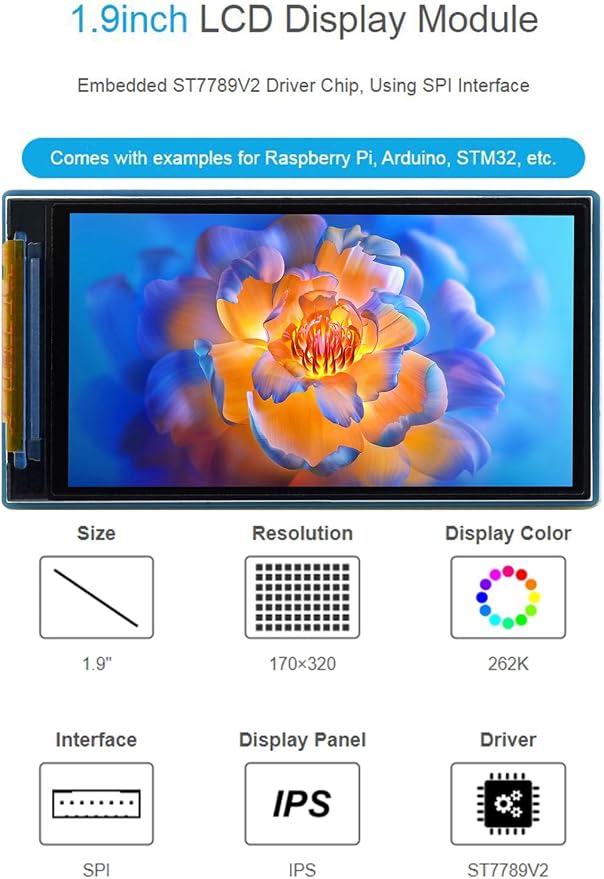

- This is Waveshare 1.9inch LCD Display Module, 170×320 Resolution, 262K colors, clear and colorful displaying effect
- Embedded ST7789V2 driver chip, Using SPI Interface

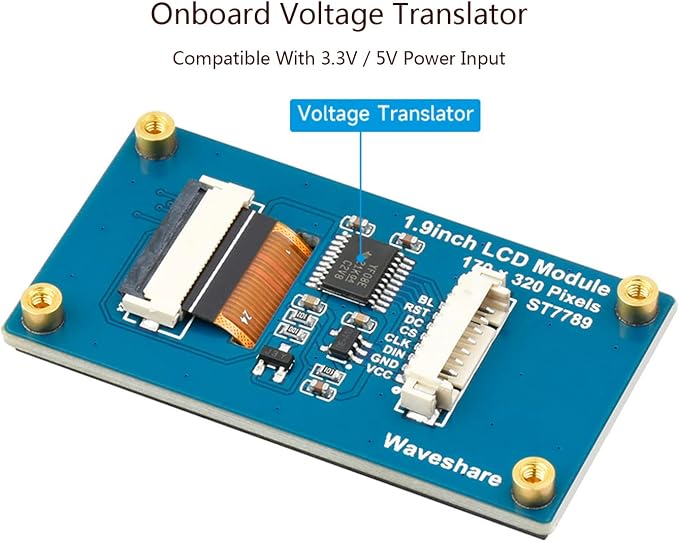

- Onboard Voltage Translator---Compatible With 3.3V / 5V Power input

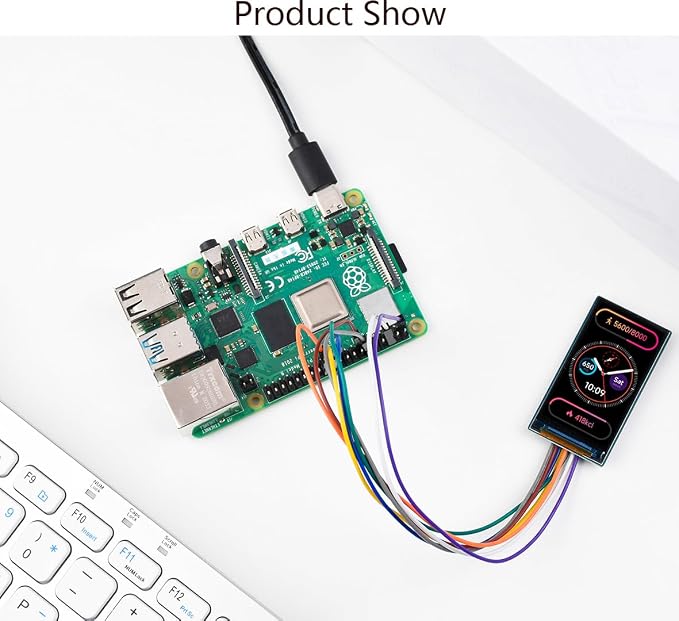

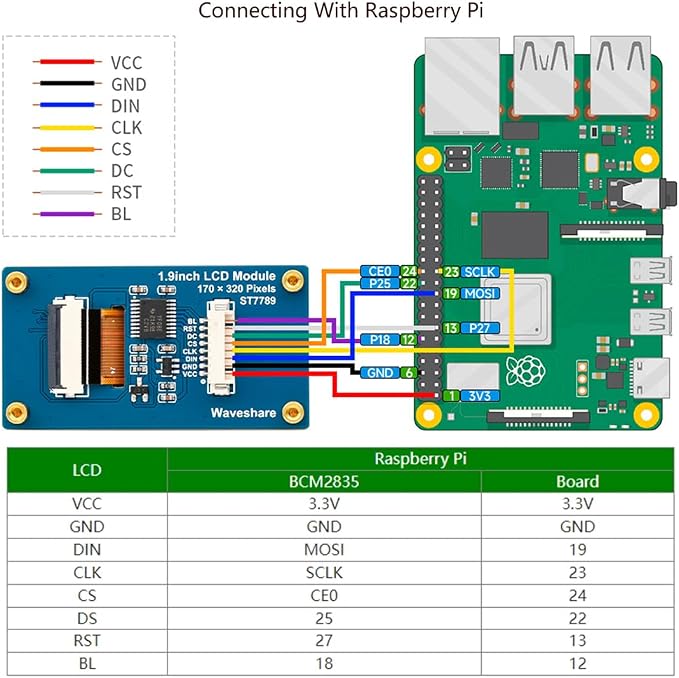

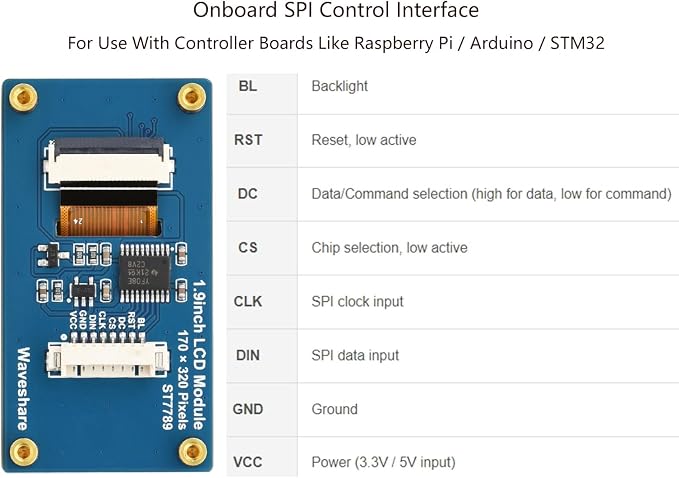

- Onboard SPI Control Interface--For Use With Controller Boards, Compatible with Raspberry Pi/ withArduino/STM32
- This LCD supports the input RGB format of 12 bits, 16 bits, and 18 bits, that is, RGB444, RGB565, and RGB666. The demo used here is RGB565, which is the RGB format we generally used. As the LCD adopts 4-wire SPI, it is not only faster in communication, but also saves more GPIO headers.
